Sorry - this product is no longer available

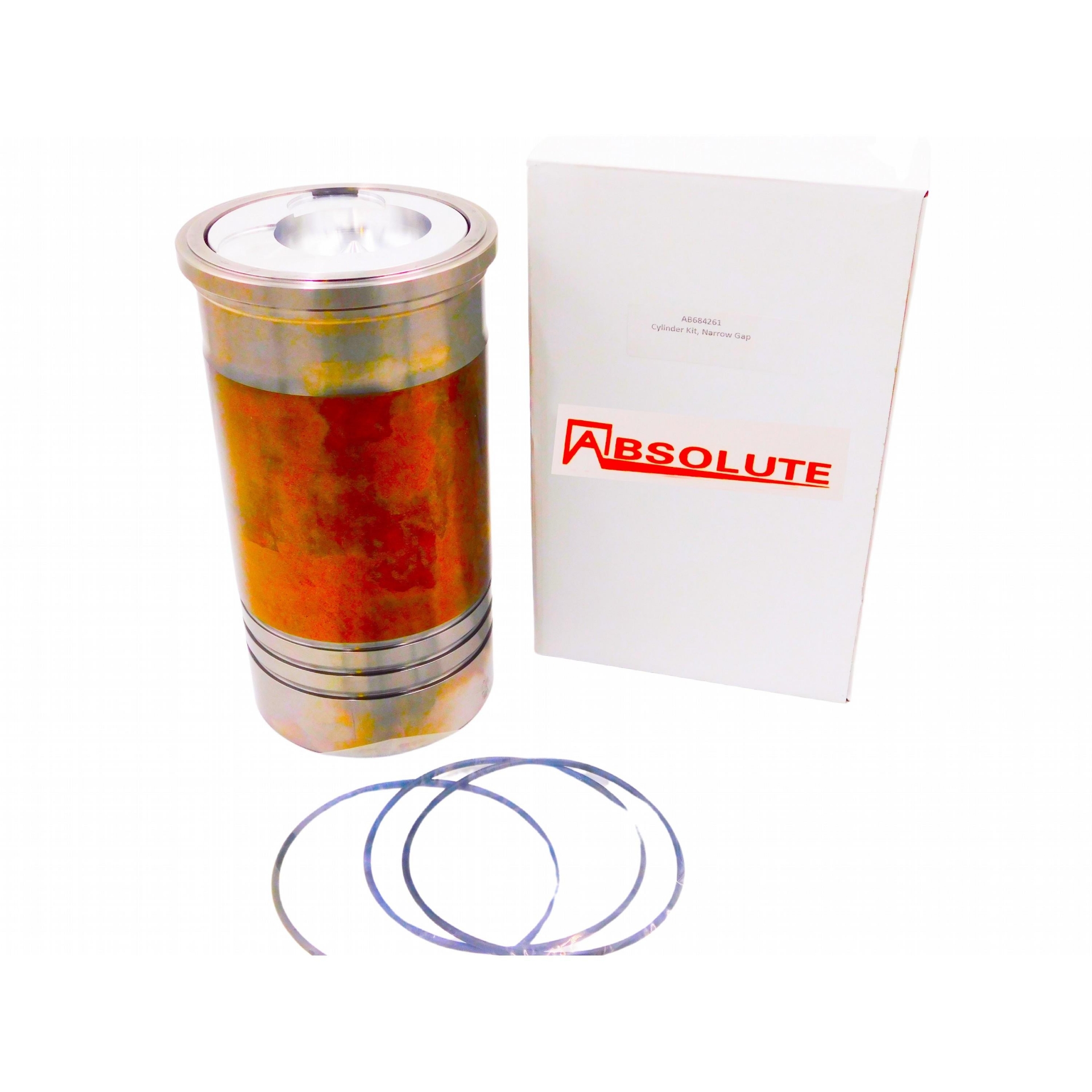

Cylinder Kit, Narrow Gap Rings

Includes:• (1) HCAB1810504 Cylinder Liner• (1) HCAB680086 Liner Sealing Ring Kit• (1) HCAB1346908 Piston Ring Set• (1) Piston w/ Pin & RetainersThe HCAB684261 Cylinder Kit, Narrow Gap Rings fits equipment brands such as: International

Manufacturer: Hy-Capacity

SKU: HCAB684261

Vendor: Hy-Capacity

Availability:

In stock

$182.17

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
New/Reman	New
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
New/Reman	New
Sold As	Each
Warranty	1 Year

Use On Below Models (Click to expand)

International

COMBINE: 1460 IH DT436 Diesel, Narrow Bearings, 1.22" Main Brg, 1.18" Rod Brg & Narrow Ring Gap (Second Ring: .020" - .033"), Breather On Block 1480 IH DT436 Diesel, Narrow Bearings, 1.22" Main Brg, 1.18" Rod Brg & Narrow Ring Gap (Second Ring: .020" - .033"), Breather On Block

TRACTOR: 1466 IH DT436 Diesel, Narrow Bearings, 1.22" Main Brg, 1.18" Rod Brg & Narrow Ring Gap (Second Ring: .020" - .033"), Breather On Block 1486 IH DT436 Diesel, Narrow Bearings, 1.22" Main Brg, 1.18" Rod Brg & Narrow Ring Gap (Second Ring: .020" - .033"), Breather On Block 1566 IH DT436 Diesel, Narrow Bearings, 1.22" Main Brg, 1.18" Rod Brg & Narrow Ring Gap (Second Ring: .020" - .033"), Breather On Block 1586 IH DT436 Diesel, Narrow Bearings, 1.22" Main Brg, 1.18" Rod Brg & Narrow Ring Gap (Second Ring: .020" - .033"), Breather On Block 3388 IH DT436 Diesel, Narrow Bearings, 1.22" Main Brg, 1.18" Rod Brg & Narrow Ring Gap (Second Ring: .020" - .033"), Breather On Block 4166 IH DT436 Diesel, Narrow Bearings, 1.22" Main Brg, 1.18" Rod Brg & Narrow Ring Gap (Second Ring: .020" - .033"), Breather On Block 4186 IH DT436 Diesel, Narrow Bearings, 1.22" Main Brg, 1.18" Rod Brg & Narrow Ring Gap (Second Ring: .020" - .033"), Breather On Block 5088 IH DT436 Diesel, Narrow Bearings, 1.22" Main Brg, 1.18" Rod Brg & Narrow Ring Gap (Second Ring: .020" - .033"), Breather On Block 6388 IH DT436 Diesel, Narrow Bearings, 1.22" Main Brg, 1.18" Rod Brg & Narrow Ring Gap (Second Ring: .020" - .033"), Breather On Block
