Cylinder Kit, Emissions Certified

Be the first to review this product

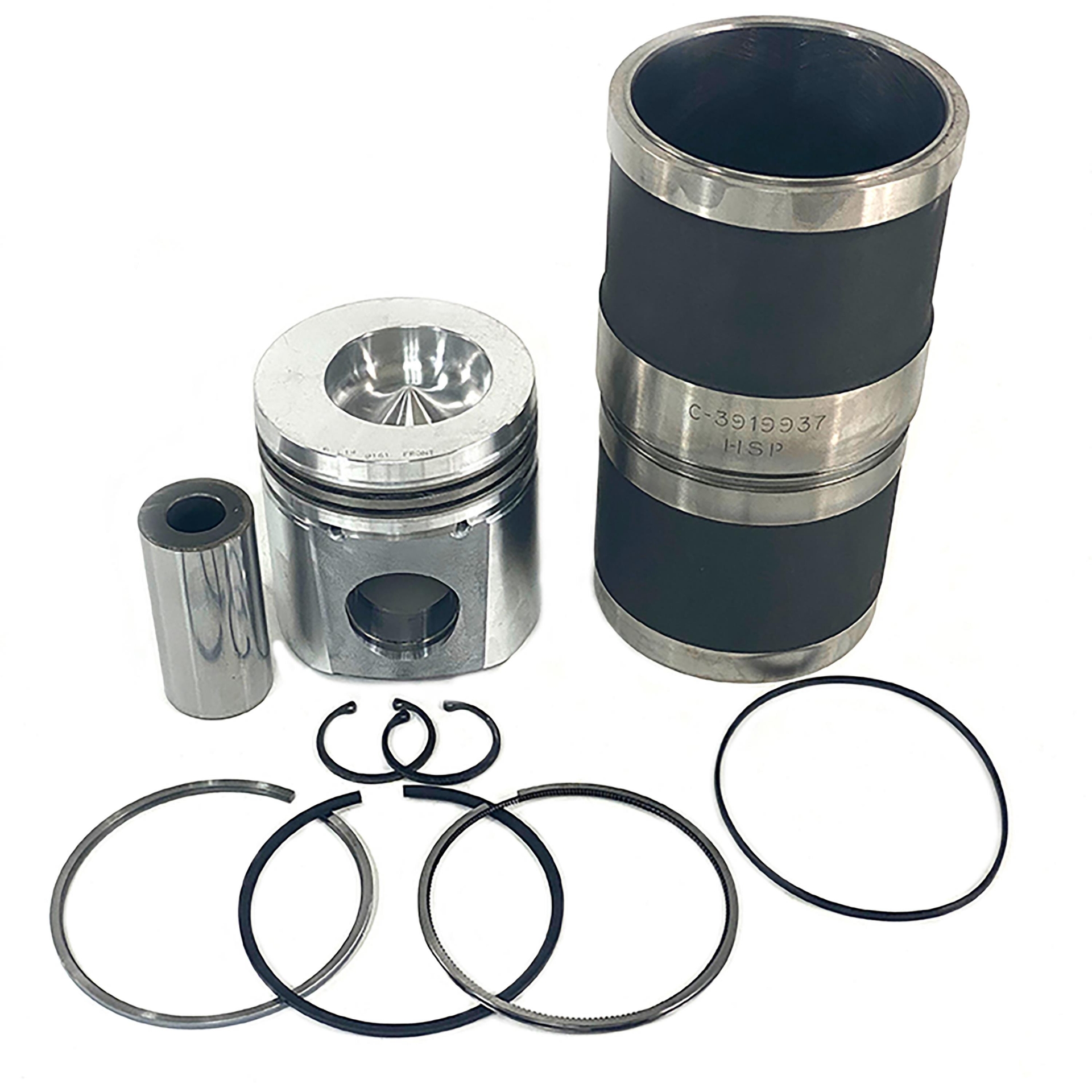

Emissions certified.Includes:• (1) HCC3802407 Cylinder Liner Kit• (1) HCC3929161 Piston• (1) HCC3802258 Piston Ring SetThe HCCPLK9161L Cylinder Kit, Emissions Certified fits equipment brands such as: Case IH, Cummins

Manufacturer: Hy-Capacity

SKU: HCCPLK9161L

Vendor: Hy-Capacity

Availability:

In stock

$221.81

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Dimensions	Liner Flange Diameter: 5.155", Liner Overall Length: 9.33"
New/Reman	New
Piston Marked	9161
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Dimensions	Liner Flange Diameter: 5.155", Liner Overall Length: 9.33"
New/Reman	New
Piston Marked	9161
Sold As	Each
Warranty	1 Year

Product tags

A77854 (1)
,
HCPLK9161L (1)

Use On Below Models (Click to expand)

Case IH

Combine: 2166 Cummins 6T830 Diesel, From Combine S/N JJC0180,000 & To Eng. S/N 45,636,465, Qty. 6 2188 Cummins 6TA830 Diesel, From Combine S/N JJC0191,483 & To Eng. S/N 45,636,465, Qty. 6 2366 Cummins 6TA830 Diesel, To Combine S/N JJC0255,700 & To Eng. S/N 45,636,465, Qty. 6 2388 Cummins 6TA830 Diesel, To Combine S/N JJC0276,540 & To Eng. S/N 45,636,465, Qty. 6

Tractor: 8910 Cummins 6T830 Diesel, To Eng. S/N 45,636,465, Qty. 6 8920 Cummins 6T830 Diesel, To Eng. S/N 45,636,465, Qty. 6 8930 Cummins 6T830 Diesel, To Eng. S/N 45,636,465, Qty. 6 8940 Cummins 6TA830 Diesel, To Eng. S/N 45,636,465, Qty. 6 8950 Cummins 6TA830 Diesel, To Eng. S/N 45,636,465, Qty. 6 9310 Cummins 6T830 Diesel, From Tractor S/N JEE0036,5008 & To Eng. S/N 45,636,465, Qty. 6 9330 Cummins 6TA830 Diesel, From Tractor S/N JEE0036,5008 & To Eng. S/N 45,636,465, Qty. 6 MX180 Cummins 6T830 Diesel, To Eng. S/N 45,636,465, Qty. 6 MX200 Cummins 6TA830 Diesel, To Eng. S/N 45,636,465, Qty. 6 MX220 Cummins 6TA830 Diesel, To Eng. S/N 45,636,465, Qty. 6

Cummins

Engine: 8.3 Engine 6CT/6CTA/6CTAA 8.3, w/ Piston # 9161; To ESN 4563465, Liner Flange 5.155", Liner Overall Length 9.33"
