Cylinder Kit

Be the first to review this product

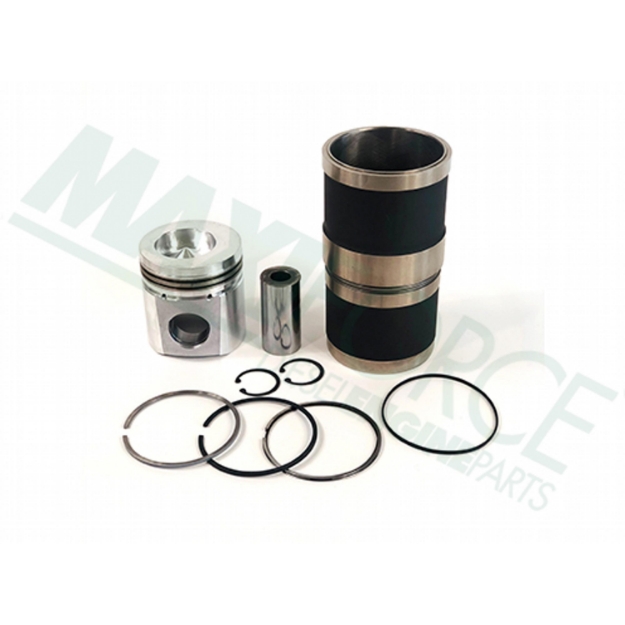

Includes:• (1) HCC3802407 Cylinder Liner Kit• (1) HCC3923164 Piston• (1) HCC3802258 Piston Ring SetThe HCC3802404 Cylinder Kit fits equipment brands such as: Case IH, CumminsThe HCC3802404 is a substitute for the following discontinued products: HCRK3802404

Manufacturer: Hy-Capacity

SKU: HCC3802404

Vendor: Hy-Capacity

Availability:

In stock

$155.14

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Dimensions	Liner Flange Diameter: 5.155", Liner Overall Length: 9.33"
New/Reman	New
Piston Marked	3164, 8750, 9565, 9930
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Dimensions	Liner Flange Diameter: 5.155", Liner Overall Length: 9.33"
New/Reman	New
Piston Marked	3164, 8750, 9565, 9930
Sold As	Each
Warranty	1 Year

Product tags

A77764 (1)
,
A77799 (2)
,
3802404 (2)

Use On Below Models (Click to expand)

Case IH

Combine: 1680 Cummins 6TA830 Diesel, From Combine P.I.N. #JJC45,689 & From Eng. S/N 44,706,125, Qty. 6 1688 Cummins 6TA830 Diesel, From Eng. S/N 44,706,125, Qty. 6 2188 Cummins 6TA830 Diesel, To Combine S/N JJC0191,483, Qty. 6

Cotton Picker: 2155 Cummins 6TA830 Diesel, S/N JJC0156229>, Qty. 6

Tractor: 7140 Cummins 6TA830 Diesel, From Eng. S/N 44,706,125, Qty. 6 7150 Cummins 6TA830 Diesel, From Eng. S/N 44,706,125, Qty. 6 7240 Cummins 6TA830 Diesel, To Tractor P.I.N.#JJA64,978, Qty. 6 7250 Cummins 6TA830 Diesel, To Tractor P.I.N.#JJA64,978, Qty. 6 9230 Cummins 6TA830 Diesel, From Eng. S/N 44,706,125, Qty. 6 9240 Cummins 6TA830 Diesel, From Eng. S/N 44,706,125, Qty. 6 9330 Cummins 6TA830 Diesel, To Tractor S/N JEE0036,5008, Qty. 6

Cummins

Engine: 8.3 Engine 6CTA 8.3, w/ Piston # 3164, 8750, 9565, 9930; After ESN 44706125, Liner Flange 5.155", Liner Overall Length 9.33"
