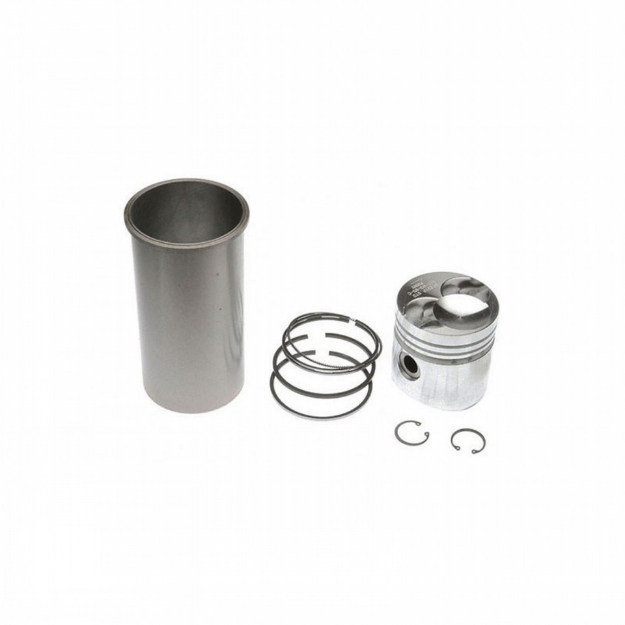

Cylinder Kit, .005" Oversize liner, 1.125" piston pin diameter

Be the first to review this product

Includes: (1) HCRRP323803 Cylinder Sleeve(1) HCR7318377K Piston(1) HCR7680035 Piston Ring SetThe HCRRP141157 Cylinder Kit, .005" Oversize liner, 1.125" piston pin diameter fits equipment brands such as: International

Manufacturer: Hy-Capacity

SKU: HCRRP141157

Vendor: Hy-Capacity

Availability:

In stock

$75.65

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Dimensions	.005" Oversize
New/Reman	New
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Dimensions	.005" Oversize
New/Reman	New
Sold As	Each
Warranty	1 Year

Use On Below Models (Click to expand)

International

Combine: 151 IH D282 Diesel, 1.125" pin, 4.165" OD flange, 3.75" thrust bearing flange 151 Hillside IH D282 Diesel, 1.125" pin, 4.165" OD flange, 3.75" thrust bearing flange 181 IH D282 Diesel, 1.125" pin, 4.165" OD flange, 3.75" thrust bearing flange

COMBINE: 403 IH D282 Diesel, 1.125" pin, wide flange liner 615 IH D282 Diesel, 1.125" pin, wide flange liner

Cotton Picker: 214 IH D282 Diesel, 1.125" pin, 4.165" OD flange, 3.75" thrust bearing flange 214A IH D282 Diesel, 1.125" pin, 4.165" OD flange, 3.75" thrust bearing flange 220 IH D282 Diesel, 1.125" pin, 4.165" OD flange, 3.75" thrust bearing flange 220A IH D282 Diesel, 1.125" pin, 4.165" OD flange, 3.75" thrust bearing flange

COTTON PICKER: 414 IH D282 Diesel, 1.125" pin, wide flange liner 416 IH D282 Diesel, 1.125" pin, 4.165" OD flange, 4.00" thrust bearing flange 420 IH D282 Diesel, 1.125" pin, wide flange liner 422 IH D282 Diesel, 1.125" pin, 4.165" OD flange, 4.00" thrust bearing flange

Crawler/Dozer: TD9 (92 Series) IH D282 Diesel, 1.125" pin, 4.165" OD flange, 3.75" thrust bearing flange

CRAWLER/DOZER: TD6 62 Series IH D282 Diesel, 1.125" pin, wide flange liner TD9B IH D282 Diesel, 1.125" pin, wide flange liner

Tractor: 2500 Constructall IH D188 Diesel, Early, 4.165" OD liner flange 560 IH D282 Diesel

TRACTOR: 2504 IH D188 Diesel, Early, 4.165" OD liner flange 2656 IH D282 Diesel, 1.125" pin, 4.165" OD flange, 4.00" thrust bearing flange 2706 IH D282 Diesel, 1.125" pin, 4.165" OD flange, 4.00" thrust bearing flange 3514 IH D188 Diesel, Early, 4.165" OD liner flange 504 IH D188 Diesel, Early, 4.165" OD liner flange 656 IH D282 Diesel, 1.125" pin, 4.165" OD flange, 4.00" thrust bearing flange 660 IH D282 Diesel 706 IH D282 Diesel, 1.125" pin, 4.165" OD flange, 4.00" thrust bearing flange
