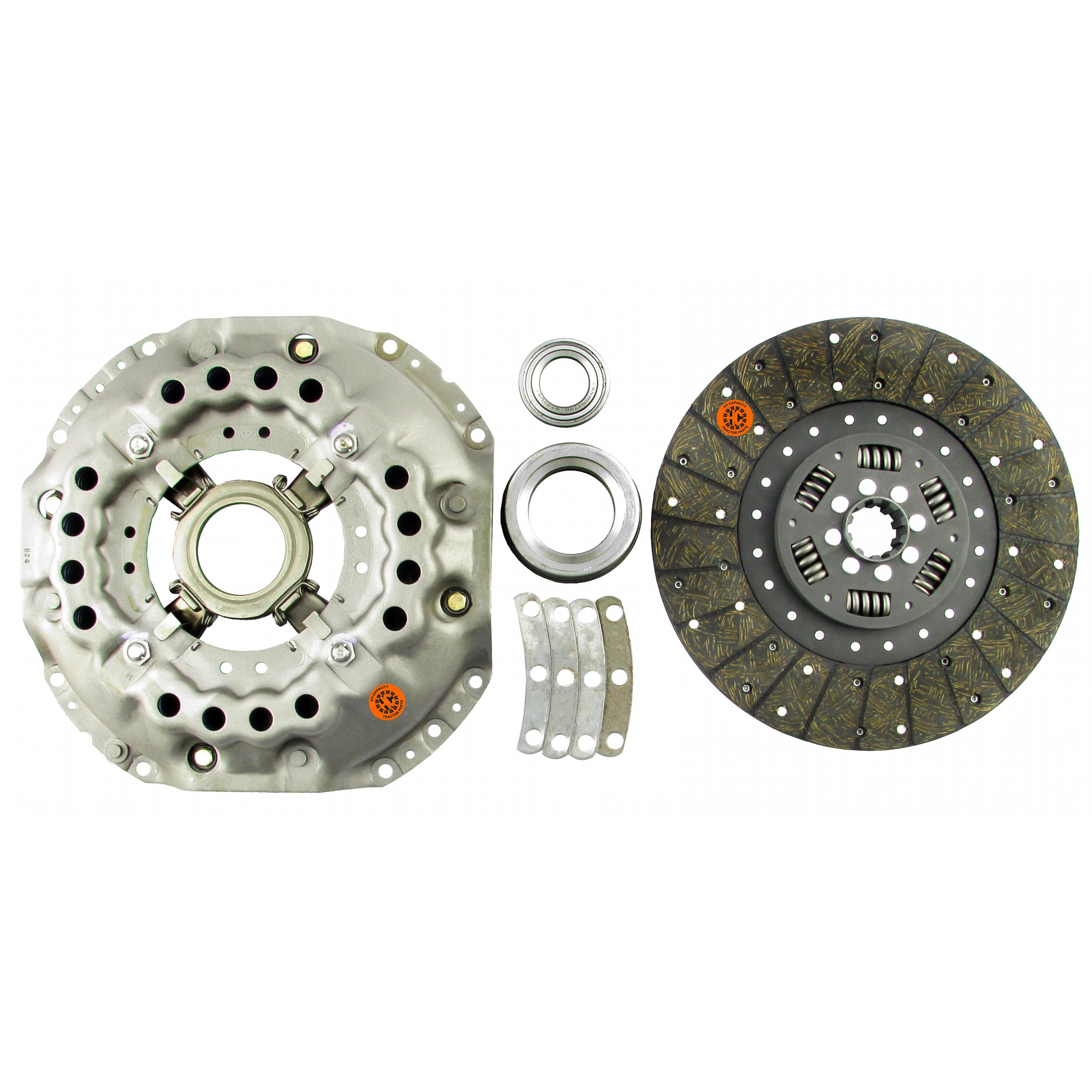

13" Single Stage Clutch Kit, w/ Woven Disc & Bearings - New

Includes .090 shims. Use 8301153 Clutch Alignment Tool.Includes: FD863AB New (PPA), FD950AB (Disc), 832505 (Release Bearing), 836108 (Pilot Bearing)The FD863AB KIT 13" Single Stage Clutch Kit, w/ Woven Disc & Bearings - New fits equipment brands such as: Ford

Manufacturer: Hy-Capacity

SKU: FD863AB KIT

Vendor: Hy-Capacity

Availability:

In stock

$322.66

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Size	13"
Flywheel Step	Flat
PPA Levers	4
PPA Springs	16 Coil Springs
Flywheel Disc Spec	Woven; 1-3/4" 10 Spline Hub; Spring Center
New/Reman	New
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Size	13"
Flywheel Step	Flat
PPA Levers	4
PPA Springs	16 Coil Springs
Flywheel Disc Spec	Woven; 1-3/4" 10 Spline Hub; Spring Center
New/Reman	New
Sold As	Each
Warranty	1 Year

Product tags

FD863AB KIT - Instruction Guide (1)

Use On Below Models (Click to expand)

Ford

Tractor: 5000 Eff. 10/01/1971 - 9/1975, w/ Independent PTO, w/ Dual Power & Used w/ (10 Spline) Discs 5100 Eff. 10/01/1971 - 9/1975, w/ Independent PTO, w/ Dual Power & Used w/ (10 Spline) Discs 5200 Eff. 10/01/1971 - 9/1975, w/ Independent PTO, w/ Dual Power & Used w/ (10 Spline) Discs 5610 Eff. 1001/1981, w/ Independent PTO, w or w/o Dual Power 5610S Eff. 1994 5700 Eff. 10/01/1975 - 10/1981, w/ Independent PTO, w/ Dual Power & Used w/ (10 Spline) Discs 5900 6600 Eff. 10/01/1975 - 10/1981, w/ Independent PTO, w/ Dual Power & Used w/ (10 Spline) Discs 6610 Eff. 1001/1981, w/ Independent PTO, w or w/o Dual Power 6610S Eff. 1994 6700 Eff. 10/01/1975 - 10/1981, w/ Independent PTO, w/ Dual Power & Used w/ (10 Spline) Discs 6710 Eff. 1001/1981, w/ Independent PTO, w or w/o Dual Power 6810S Eff. 1994 7000 Eff. 10/01/1971 - 9/1975, w/ Independent PTO, w/ Dual Power & Used w/ (10 Spline) Discs 7100 Eff. 10/01/1971 - 9/1975, w/ Independent PTO, w/ Dual Power & Used w/ (10 Spline) Discs 7200 Eff. 10/01/1971 - 9/1975, w/ Independent PTO, w/ Dual Power & Used w/ (10 Spline) Discs 7410 7600 Eff. 10/01/1975 - 10/1981, w/ Independent PTO, w/ Dual Power & Used w/ (10 Spline) Discs 7610 Eff. 1001/1981, w/ Independent PTO, w or w/o Dual Power 7610S Eff. 1994 7700 Eff. 10/01/1975 - 10/1981, w/ Independent PTO, w/ Dual Power & Used w/ (10 Spline) Discs 7710 Eff. 1001/1981, w/ Independent PTO, w or w/o Dual Power 7810 Eff. 10/01/1985 - 3/01/1988 7810S Eff. 1994 7910 Eff. 10/01/1985 - 3/01/1988 8210 Eff. 10/01/1985 - 3/01/1988
