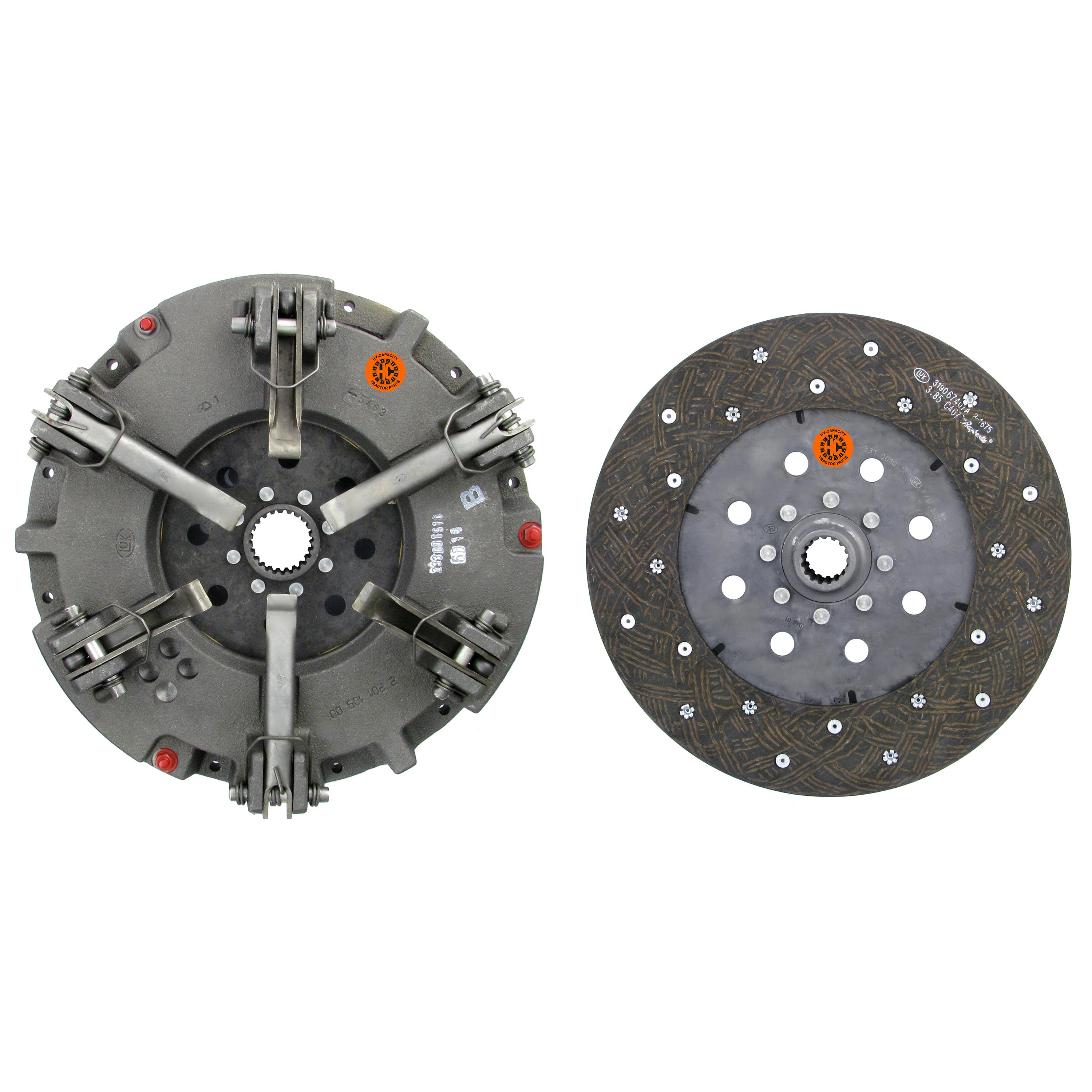

13" LuK Dual Stage Clutch Unit - New

Contains a 13" internal disc.Includes: PPA, Captive Transmission Disc & Flywheel Side PTO DiscThe D2388296NU 13" LuK Dual Stage Clutch Unit - New fits equipment brands such as: DeutzThe D2388296NU is a substitute for the following discontinued products: D4386345N, D2388296RU

Manufacturer: Hy-Capacity

SKU: D2388296NU

Vendor: Hy-Capacity

Availability:

In stock

$945.24

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Size	13"
Flywheel Step	1.496"
PPA Levers	6
Captive Disc Spec	6 Pad; 1-7/8" 23 Spline Hub; Solid Center
Flywheel Disc Spec	Woven; 1-3/16" 16 Spline Hub; Solid Center
New/Reman	New
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Size	13"
Flywheel Step	1.496"
PPA Levers	6
Captive Disc Spec	6 Pad; 1-7/8" 23 Spline Hub; Solid Center
Flywheel Disc Spec	Woven; 1-3/16" 16 Spline Hub; Solid Center
New/Reman	New
Sold As	Each
Warranty	1 Year

Product tags

D2388296NU - Instruction Guide (1)

Use On Below Models (Click to expand)

Deutz

Tractor: D10006 D13006 D7505 D7506 D8006 D9005 D9006
