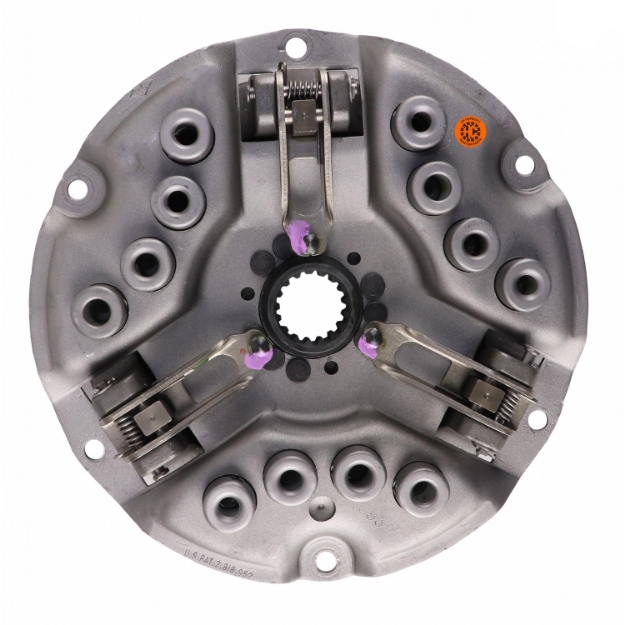

12" Single Stage Heavy Duty Pressure Plate, w/ 1-3/4" 17 Spline Hub - New

Heavy duty w/ 9 rivot hub for heavy PTO work. Heavy Duty for 405299 & 405300N.The 4053009 12" Single Stage Heavy Duty Pressure Plate, w/ 1-3/4" 17 Spline Hub - New fits equipment brands such as: International

Manufacturer: Hy-Capacity

SKU: 4053009

Vendor: Hy-Capacity

Availability:

In stock

$212.21

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Size	12"
Flywheel Step	1.406"
Hub Size	1-3/4"
Spline Count	17
PPA Levers	3
PPA Springs	12 Coil Springs
New/Reman	New
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Size	12"
Flywheel Step	1.406"
Hub Size	1-3/4"
Spline Count	17
PPA Levers	3
PPA Springs	12 Coil Springs
New/Reman	New
Sold As	Each
Warranty	1 Year

Product tags

4053009 - Instruction Guide (1)

Use On Below Models (Click to expand)

International

Tractor: 2706 2756 2806 2826 2856 3088 3288 660 706 756 766 786 806 826 856 886 966 Converting to a 14" Clutch is an option for this machine by using the following part numbers: HH672215 Flywheel & 120181 Kit Clutch Kit. If your tractor has Hydraulic Assist it is recommend to use part number 67597 Kit for the clutch.
