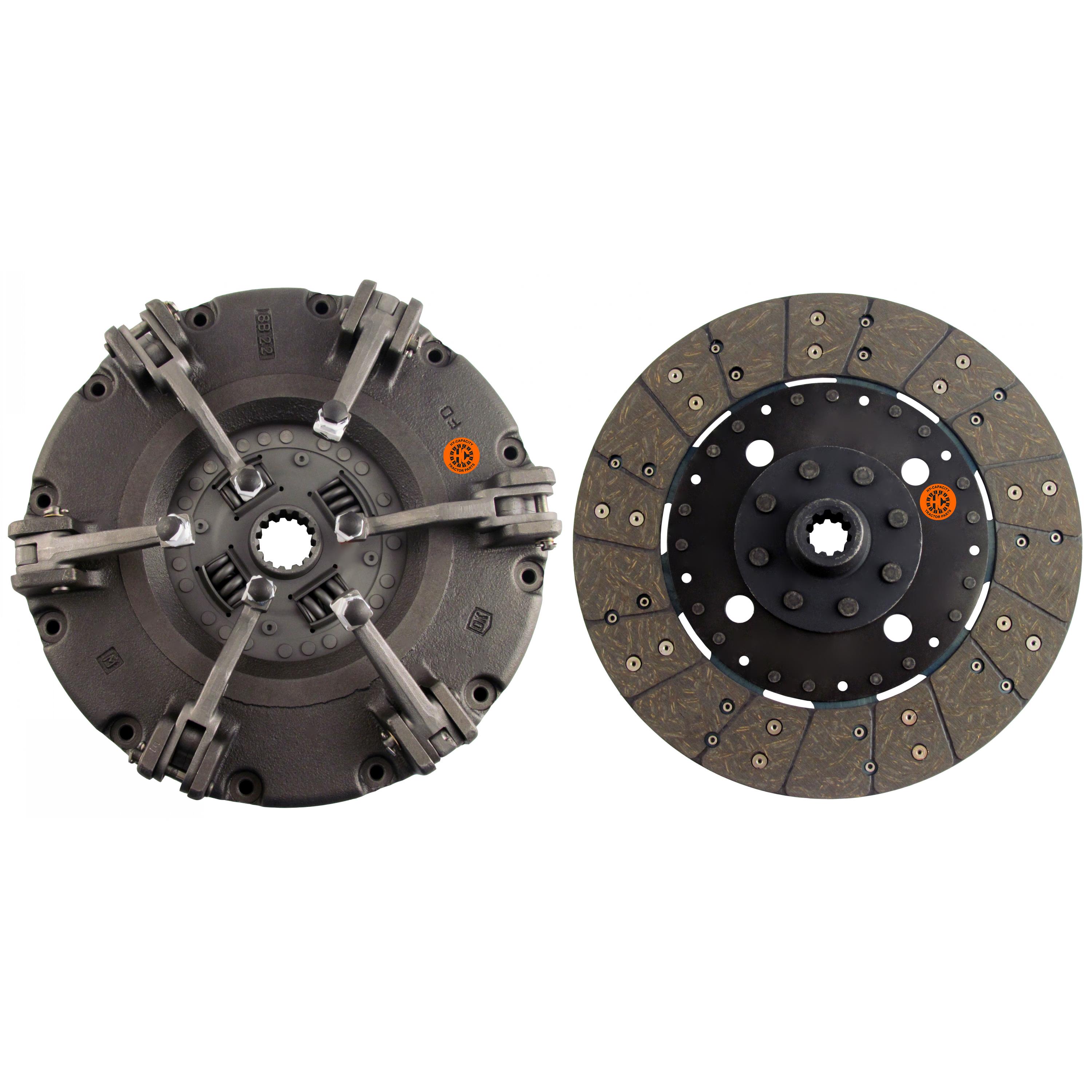

12" Dual Stage Clutch Unit - Reman

This core is extremely rare and your core is required to fulfill this order. Contact us for instructions on sending your core in for Rebuild & Return.Includes: PPA, (Captive Transmission Disc) & K32590-14300 (Flywheel Side PTO Disc)The K35593-25102U 12" Dual Stage Clutch Unit - Reman fits equipment brands such as: KubotaThe K35593-25102U is a substitute for the following discontinued products: K35593-25132

Manufacturer: Hy-Capacity

SKU: K35593-25102U

Vendor: Hy-Capacity

Availability:

Out of stock

$1,088.82

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Size	12"
Flywheel Step	0.080"
PPA Levers	6
PPA Springs	18 Coil Springs
Captive Disc Spec	6 Pad; 1-9/16" 14 Spline Hub; Spring Center
Flywheel Disc Spec	Woven; 15/16" 10 Spline Hub; Solid Center
New/Reman	Reman
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Size	12"
Flywheel Step	0.080"
PPA Levers	6
PPA Springs	18 Coil Springs
Captive Disc Spec	6 Pad; 1-9/16" 14 Spline Hub; Spring Center
Flywheel Disc Spec	Woven; 15/16" 10 Spline Hub; Solid Center
New/Reman	Reman
Sold As	Each
Warranty	1 Year

Product tags

Use On Below Models (Click to expand)

Kubota

Tractor: M8030DT
