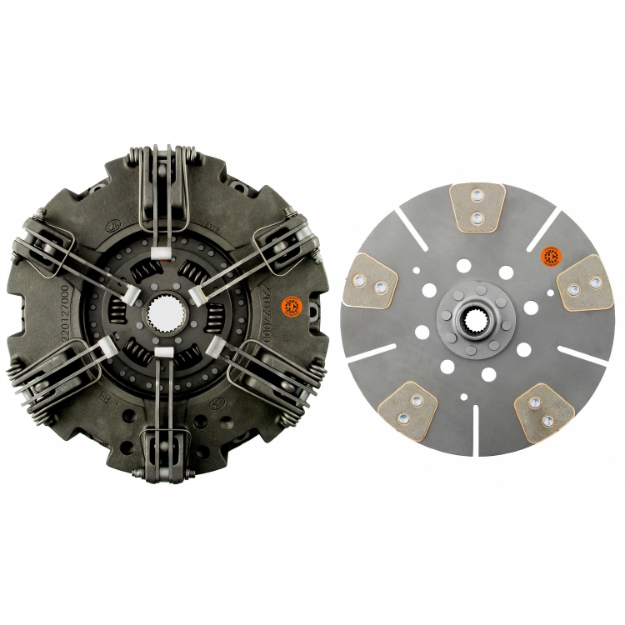

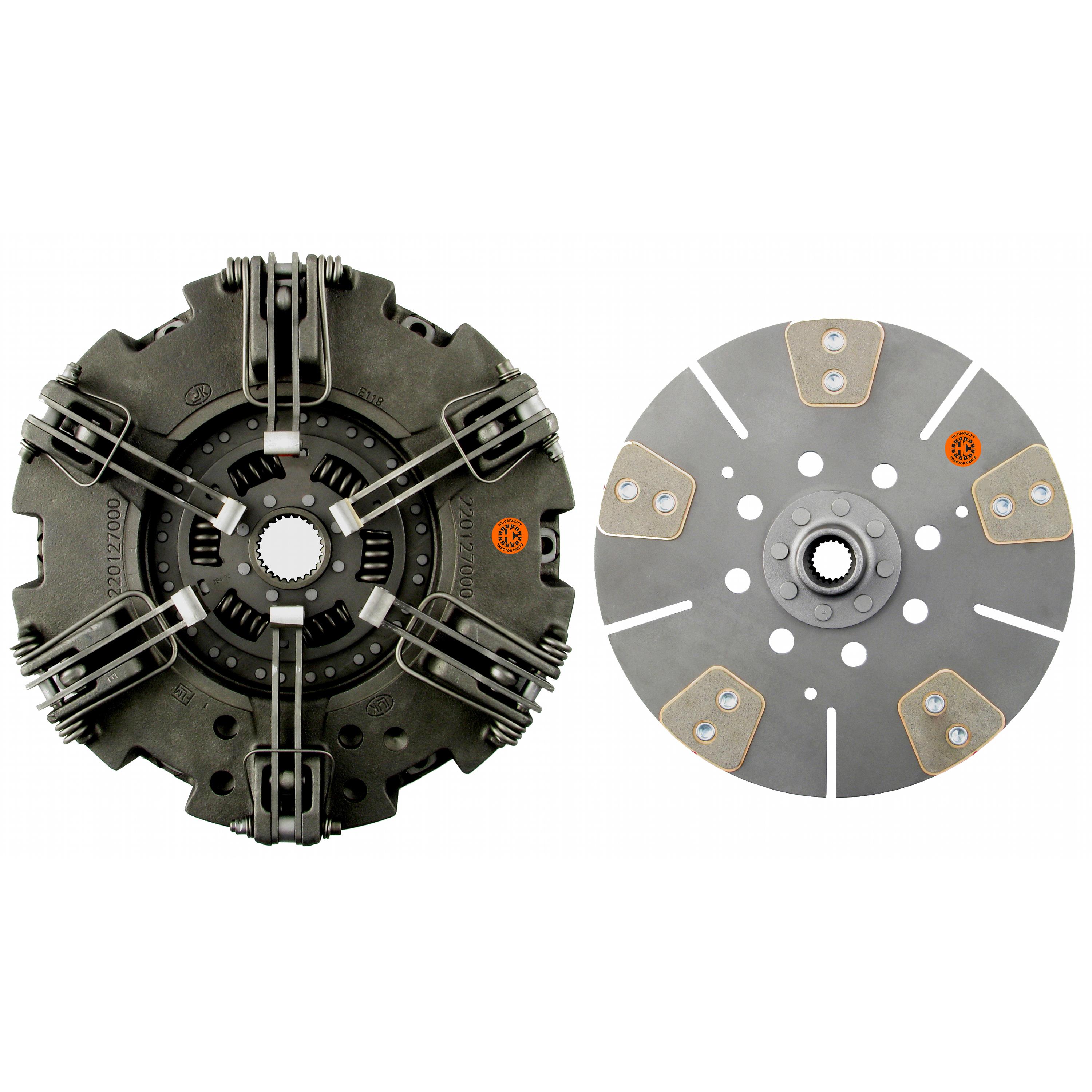

12-1/4" LuK Dual Stage Clutch Unit - New

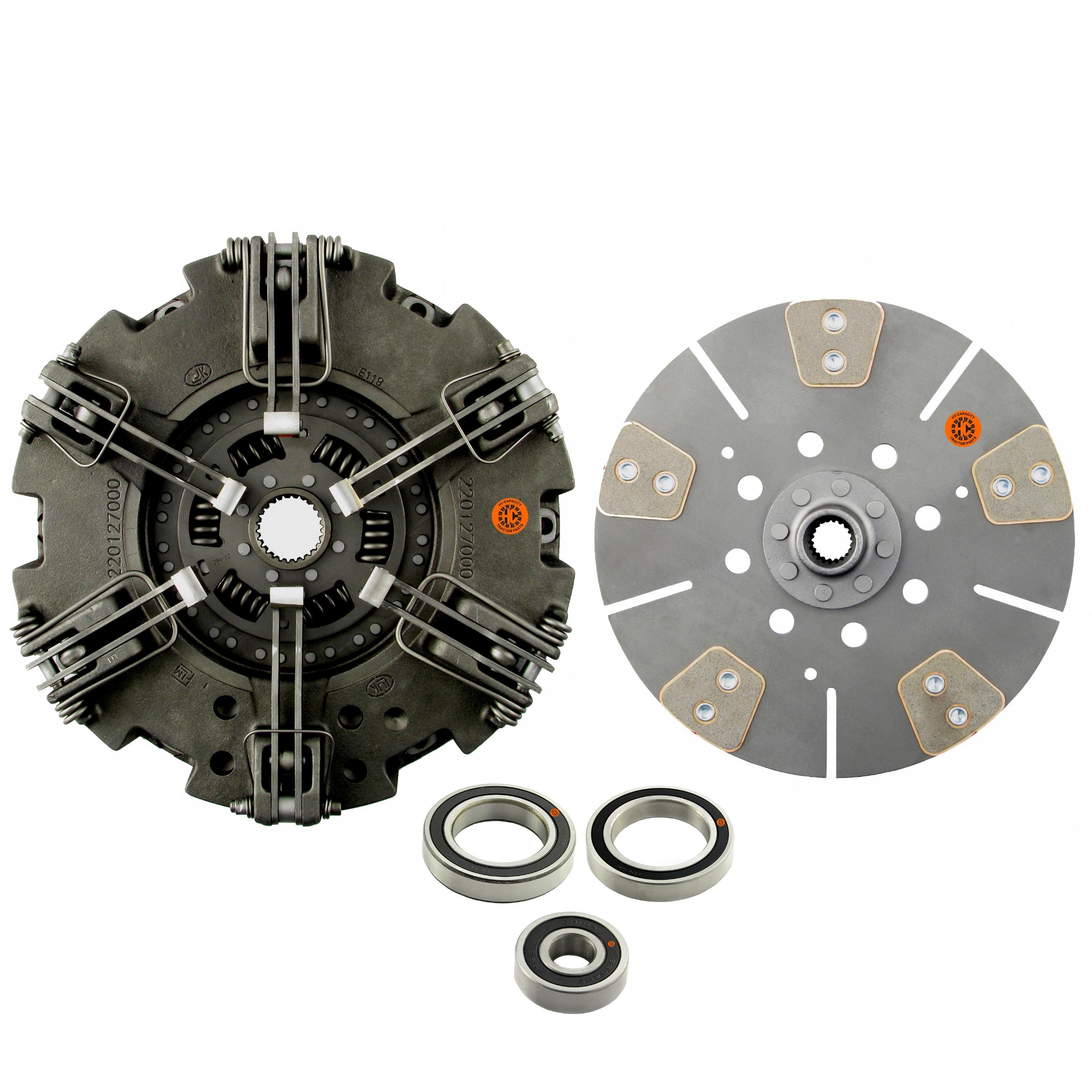

Some machines were equipped with a 6 lever Pressure Plate Assembly. Positively Identify Clutch Before Ordering.Includes: PPA, Captive Transmission Disc, Flywheel Side PTO Disc, Release Bearings, & Pilot BearingThe R91038NU 12-1/4" LuK Dual Stage Clutch Unit - New fits equipment brands such as: John DeereThe R91038NU is a substitute for the following discontinued products: R91038U

Manufacturer: Hy-Capacity

SKU: R91038NU

Vendor: Hy-Capacity

Availability:

In stock

$865.73

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Size	12-1/4"
PPA Levers	6
Captive Disc Spec	8 Pad; 1-1/16" 26 Spline Hub; Spring Center
Flywheel Disc Spec	5 Pad; 1-1/16" 20 Spline Hub; Solid Center
New/Reman	New
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Size	12-1/4"
PPA Levers	6
Captive Disc Spec	8 Pad; 1-1/16" 26 Spline Hub; Spring Center
Flywheel Disc Spec	5 Pad; 1-1/16" 20 Spline Hub; Solid Center
New/Reman	New
Sold As	Each
Warranty	1 Year

Product tags

YZ91038 (1)
,
YZ90101 (1)
,
SJ16518 (1)
,
YZ90101 (1)
,
YZ91038 (1)

Use On Below Models (Click to expand)

John Deere

Tractor: 6100D S/N <-050000 6110D S/N <-050000 6115D S/N <-050000 6125D S/N <-050000 6130D S/N <-050000 6140D S/N <-050000 6403 6603
