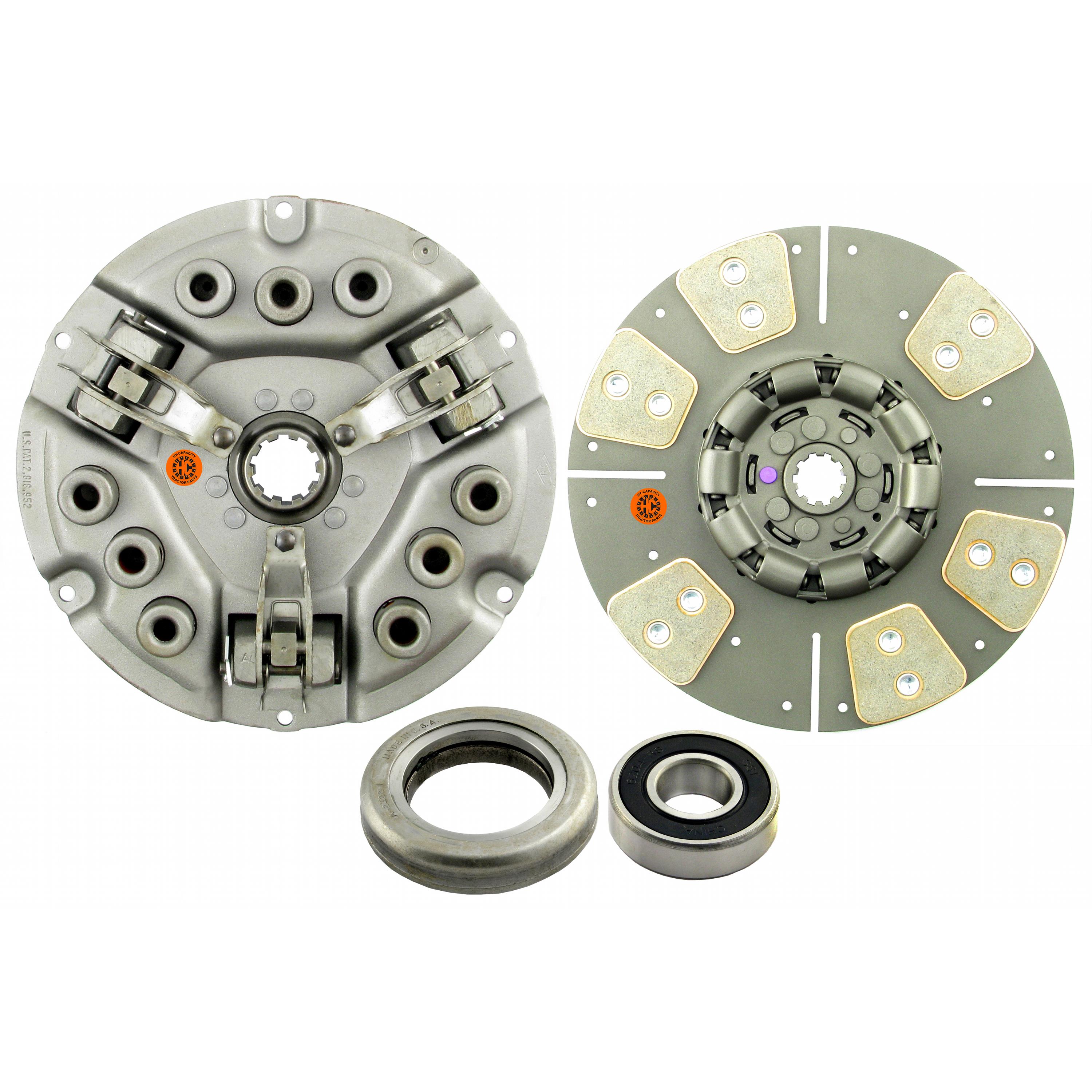

11" Single Stage Clutch Kit, w/ Bearings - New

Be the first to review this product

Heavy Duty for 1500655N.Includes: 830574 (PPA), 830575 HD6 (Disc), 832375 (Release Bearing) & 836204 (Pilot Bearing)The 830574 KIT 11" Single Stage Clutch Kit, w/ Bearings - New fits equipment brands such as: Case, Case IH, International

Manufacturer: Hy-Capacity

SKU: 830574 KIT

Vendor: Hy-Capacity

Availability:

In stock

$335.34

Qty:

+ -

Notes:

We are out of the 30 watt PAR-36 light model until around Jan. 20th 2025, if you want to place an order for those, please call. All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Size	11"
Flywheel Step	1.443"
Hub Size	1-5/8"
Spline Count	10
PPA Levers	3
PPA Springs	9 Coil Springs
Flywheel Disc Spec	6 Pad; 1-1/8" 10 Spline Hub; Spring Center
New/Reman	New
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Size	11"
Flywheel Step	1.443"
Hub Size	1-5/8"
Spline Count	10
PPA Levers	3
PPA Springs	9 Coil Springs
Flywheel Disc Spec	6 Pad; 1-1/8" 10 Spline Hub; Spring Center
New/Reman	New
Sold As	Each
Warranty	1 Year

Product tags

830574 KIT - Instruction Guide (1)

Use On Below Models (Click to expand)

Case

BACKHOE: 380B Models w/o Constant Running Release Bearing

Case IH

Tractor: 3220 Models w/o Constant Running Release Bearing 385 Models w/o Constant Running Release Bearing 485 Models w/o Constant Running Release Bearing 585 Models w/o Constant Running Release Bearing 685 Models w/o Constant Running Release Bearing 885 Models w/o Constant Running Release Bearing

International

Tractor: 2400A Models w/o Self Adjusting Constant Running Release Bearing 2400B Models w/o Self Adjusting Constant Running Release Bearing 2500A Models w/o Self Adjusting Constant Running Release Bearing 2500B Models w/o Self Adjusting Constant Running Release Bearing 3400A Models w/o Self Adjusting Constant Running Release Bearing 3500A Models w/o Self Adjusting Constant Running Release Bearing 384 Models w/o Self Adjusting Constant Running Release Bearing 454 Models w/o Self Adjusting Constant Running Release Bearing 464 Models w/o Self Adjusting Constant Running Release Bearing 474 Models w/o Self Adjusting Constant Running Release Bearing 484 Models w/o Self Adjusting Constant Running Release Bearing 574 Models w/o Self Adjusting Constant Running Release Bearing 584 Models w/o Self Adjusting Constant Running Release Bearing 674 Models w/o Self Adjusting Constant Running Release Bearing 684 Models w/o Self Adjusting Constant Running Release Bearing 784 Models w/o Self Adjusting Constant Running Release Bearing 785 Models w/o Self Adjusting Constant Running Release Bearing 884 Models w/o Self Adjusting Constant Running Release Bearing
