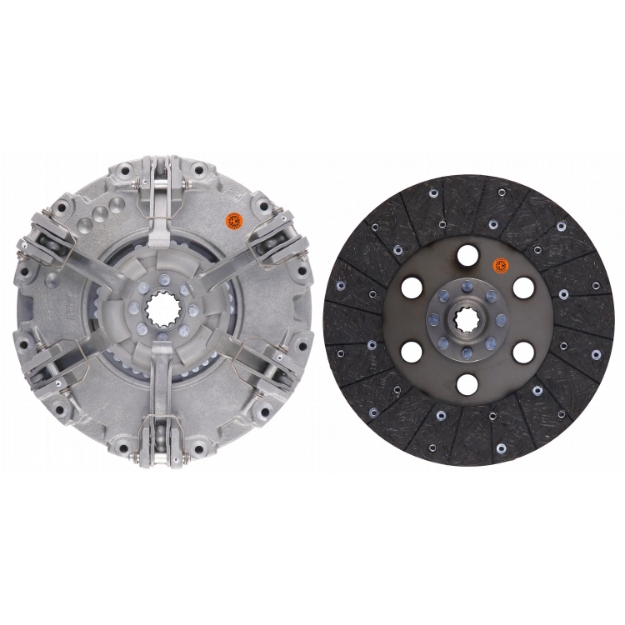

11" Dual Stage Clutch Unit - New

Includes: LuK Style PPA, D2094404 (Captive Transmission Disc) & D2091671N (Flywheel Side PTO Disc)Interchanges w/ Valeo style unit F5092792NU.The D2094463NU 11" Dual Stage Clutch Unit - New fits equipment brands such as: Allis Chalmers, Case IH, Farmtrac, Ford, Hesston-Fiat, Long, Minneapolis Moline, Montana, New Holland, Oliver, WhiteThe D2094463NU is a substitute for the following discontinued products: U5016038RU, D2094463RU

Manufacturer: Hy-Capacity

SKU: D2094463NU

Vendor: Hy-Capacity

Availability:

In stock

$554.01

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Size	11"
Flywheel Step	0.080"
PPA Levers	6
Captive Disc Spec	5 Pad; 1-9/16" 14 Spline Hub; Solid Center
Flywheel Disc Spec	Woven; 1" 10 Spline Hub; Solid Center
New/Reman	New
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Size	11"
Flywheel Step	0.080"
PPA Levers	6
Captive Disc Spec	5 Pad; 1-9/16" 14 Spline Hub; Solid Center
Flywheel Disc Spec	Woven; 1" 10 Spline Hub; Solid Center
New/Reman	New
Sold As	Each
Warranty	1 Year

Product tags

D2094463NU - Instruction Guide (1)

Use On Below Models (Click to expand)

Allis Chalmers

Tractor: 5040 8 & 12 Speed, 11" Clutch 5045 Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve 5050 6060 6070

Case IH

Tractor: JX55 Positively Identify Clutch before Ordering JX65 Positively Identify Clutch before Ordering JX75 Positively Identify Clutch before Ordering JX85 Positively Identify Clutch before Ordering JX90 Positively Identify Clutch before Ordering

Farmtrac

Tractor: 530 Must Positively Identify Clutch Size as 11" - Will Not Work For 10.6" Version w/ 6 Bolts. Replaces 9 Mounting Hole Pressure Plates, Some Machines Had a Single Clutch, Please Identify Clutch & Size Before Ordering 550 Must Positively Identify Clutch Size as 11" - Will Not Work For 10.6" Version w/ 6 Bolts. Replaces 9 Mounting Hole Pressure Plates, Some Machines Had a Single Clutch, Please Identify Clutch & Size Before Ordering

Ford

Tractor: 3010S Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve 4010S Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve 4030 Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve 4230 Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve 4430 Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve 5010S Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve 5530 Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve 6530 Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve

Hesston-Fiat

Tractor: 446 Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve 450S Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve 466 Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve 500 Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve 540 Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve 55-46 Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve 55-66 Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve 55-90 Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve 550 Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve 566 Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve 580 Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve 60-66 Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve 60-90 Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve 600 Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve 640 Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve 65-46 Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve 666 Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve 666DT Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve 670 Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve 680 Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve 680DT Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve 70-66 Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve 70-90 Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve 740 Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve 766 Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve 766DT Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve 780 Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve 80-66 Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve 80-90 Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve 80-90DT Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve

Long

Tractor: 2360 Luk Style Replacement for 9 Mounting Hole OE Clutch 2460 Luk Style Replacement for 9 Mounting Hole OE Clutch 2510 Luk Style Replacement for 9 Mounting Hole OE Clutch 2610 Luk Style Replacement for 9 Mounting Hole OE Clutch 460 8 Speed Transmission, Luk Style Replacement for 9 Mounting Hole OE Clutch 510 Luk Style Replacement for 9 Mounting Hole OE Clutch 560 8 Speed Transmission, Luk Style Replacement for 9 Mounting Hole OE Clutch 610 Luk Style Replacement for 9 Mounting Hole OE Clutch 680 Luk Style Replacement for 9 Mounting Hole OE Clutch

Minneapolis Moline

Tractor: G450 Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve

Montana

Tractor: 6864C

New Holland

Tractor: TD60D Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve TD70D Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve TD75D Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve TD80D Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve TD90D Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve TT55 Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve TT65 Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve TT75 Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve

Oliver

Tractor: 1355 Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve 1365 Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve 1370 Must Positively Identify Clutch Before Ordering, When Replacing 3-Lever Diaphram Valeo Clutch w/ 6-Lever LuK Clutch You Must Update Flywheel, Bearing & Bearing Sleeve

White

Tractor: 2-50 2-60 Positively identify clutch before ordering. When replacing 3-Lever Diaphram Valeo w/ 6-Lever LuK, update the Flywheel, Bearing & Bearing Sleeve. 700 Positively identify clutch before ordering. When replacing 3-Lever Diaphram Valeo w/ 6-Lever LuK, update the Flywheel, Bearing & Bearing Sleeve.
