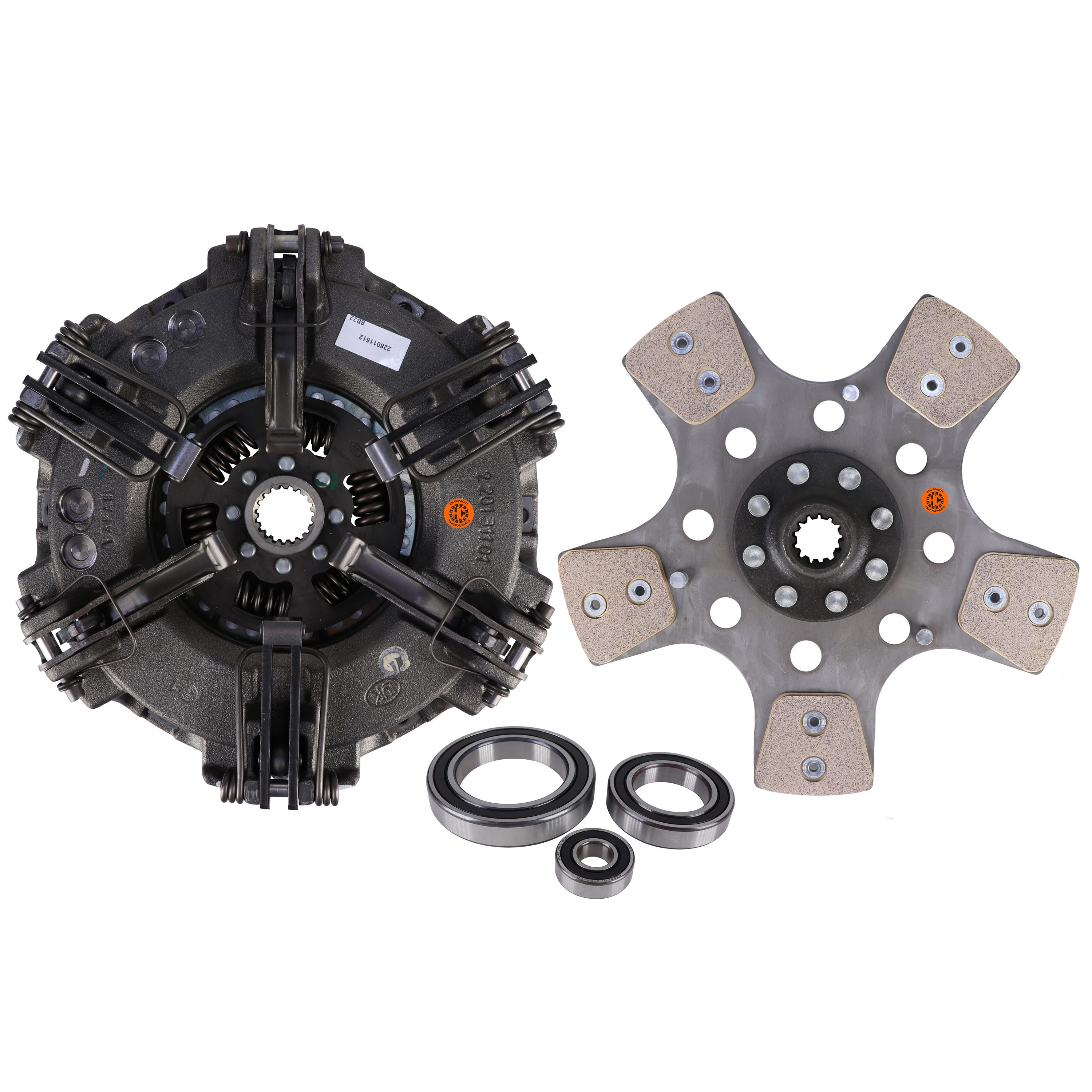

11" LuK Dual Stage Clutch Kit, w/ Bearings - New

This is a Safety PTO Clutch, check that the flywheel disc is free after installation. Learn more, Safety PTO Clutch Service Guide.Includes: PPA, Captive Transmission Disc, Flywheel Side PTO Disc, 830664 (PTO Release Bearing), 830701 (Transmission Release Bearing) & 836203 (Pilot Bearing)Also order 8302285 Transmission Release Bearing, if your Shift Collar I.D. is 2.677" for Models 5045E, 5055E, 5065E, 5075E, 5103, 5203, 5303, 5403, or 5503The R72534NU2 KIT 11" LuK Dual Stage Clutch Kit, w/ Bearings - New fits equipment brands such as: John Deere
Manufacturer: Hy-Capacity
SKU: R72534NU2 KIT
Vendor: Hy-Capacity
In stock
$831.94
+ -
Notes:

We are out of the 30 watt PAR-36 light model until around Jan. 20th 2025. You can order the lights, but the order will not ship before late January. All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info.  Please note that Hy-Capacity items can not be shipped to Canada / International.

Products specifications
Attribute name Attribute value
Size 11"
Flywheel Step 0.787"
PPA Levers 6
Captive Disc Spec 6 Pad; 1-3/8" 19 Spline Hub; Spring Center
Flywheel Disc Spec 5 Pad; 1" 13 Spline Hub; Solid Center
New/Reman New
Sold As Each
Warranty 1 Year
Products specifications
Attribute name Attribute value
Size 11"
Flywheel Step 0.787"
PPA Levers 6
Captive Disc Spec 6 Pad; 1-3/8" 19 Spline Hub; Spring Center
Flywheel Disc Spec 5 Pad; 1" 13 Spline Hub; Solid Center
New/Reman New
Sold As Each
Warranty 1 Year
Use On Below Models (Click to expand)
John Deere
Tractor
5045E w/ Collarshift or Synchshuttle Transmission. If your Machine has a Shift Collar I.D. of 2.677", also order 8302285 Transmission Release Bearing 5050E w/ Collarshift or Synchshuttle Transmission 5055E w/ Collarshift or Synchshuttle Transmission. If your Machine has a Shift Collar I.D. of 2.677", also order 8302285 Transmission Release Bearing 5060E w/ Collarshift or Synchshuttle Transmission 5065E w/ Collarshift or Synchshuttle Transmission. If your Machine has a Shift Collar I.D. of 2.677", also order 8302285 Transmission Release Bearing 5075E w/ Collarshift or Synchshuttle Transmission. If your Machine has a Shift Collar I.D. of 2.677", also order 8302285 Transmission Release Bearing 5103 w/ Collarshift or Synchshuttle Transmission. If your Machine has a Shift Collar I.D. of 2.677", also order 8302285 Transmission Release Bearing 5203 w/ Collarshift or Synchshuttle Transmission. If your Machine has a Shift Collar I.D. of 2.677", also order 8302285 Transmission Release Bearing 5210 Eff. S/N 321726, w/ Collarshift or Synchshuttle Transmission 5220 w/ Collarshift or Synchshuttle Transmission 5303 w/ Collarshift or Synchshuttle Transmission. If your Machine has a Shift Collar I.D. of 2.677", also order 8302285 Transmission Release Bearing 5310 Eff. S/N 332930, w/ Collarshift or Synchshuttle Transmission 5310N Eff. S/N 337355, w/ Syncreverser Transmission 5320 w/ Collarshift or Synchshuttle Transmission 5320N w/ Syncreverser Transmission 5403 w/ Collarshift or Synchshuttle Transmission. If your Machine has a Shift Collar I.D. of 2.677", also order 8302285 Transmission Release Bearing 5410 Eff. S/N 342473, w/ Collarshift or Synchshuttle Transmission 5415 S/N 002288-> w/ Collarshift or Synchshuttle Transmission, w/ Cast Plate Thickness 1.420" & Cast Plate # 220230401, Tractor must be split in order to identify specifications to prevent ordering errors 5420 w/ Syncshuttle & Collarshift Transmission 5420N w/ Syncreverser Transmission 5425N w/ Cast Plate Thickness 1.420" & Cast Plate # 220230401 5503 w/ Collarshift or Synchshuttle Transmission. If your Machine has a Shift Collar I.D. of 2.677", also order 8302285 Transmission Release Bearing 5510 Eff. S/N 351742, w/ Collarshift or Synchshuttle Transmission 5510N Eff. S/N 357403, w/ Syncreverser Transmission 5520 w/ Syncshuttle & Collarshift Transmission 5520N w/ Syncreverser Transmission 5525 w/ Collarshift Transmission 5600 Positively Identify Clutch Before Ordering 5603 w/ Collarshift or Synchshuttle Transmission 5605 w/ Collarshift & TSS Tranmission 5615 S/N 002319-> w/ Collarshift or Synchshuttle Transmission, w/ Cast Plate Thickness 1.420" & Cast Plate # 220230401, Tractor must be split in order to identify specifications to prevent ordering errors 5700 Positively Identify Clutch before ordering 5705 w/ Collarshift & TSS Tranmission 5715 S/N 003601-> w/ Collarshift or Synchshuttle Transmission, w/ Cast Plate Thickness 1.420" & Cast Plate # 220230401, Tractor must be split in order to identify specifications to prevent ordering errors 5725 w/ Collarshift Transmission 5725N w/ Cast Plate Thickness 1.420" & Cast Plate # 220230401
TRACTOR
5425 w/ 0.787" Step Flywheel & Collarshift Transmission 5625 w/ 0.787" Step Flywheel & Collarshift Transmission
