11" LuK Dual Stage Clutch Kit, w/ Bearings - New

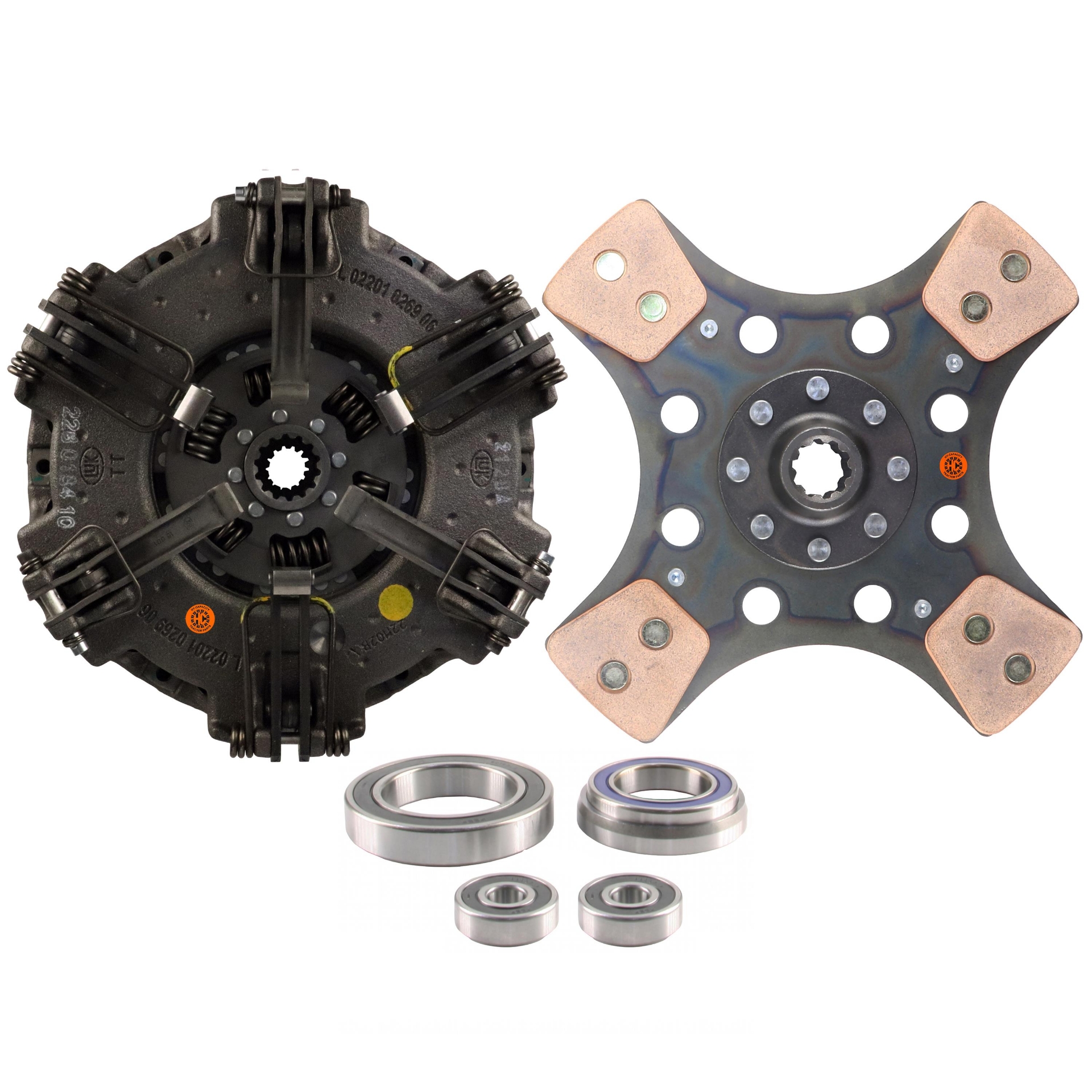

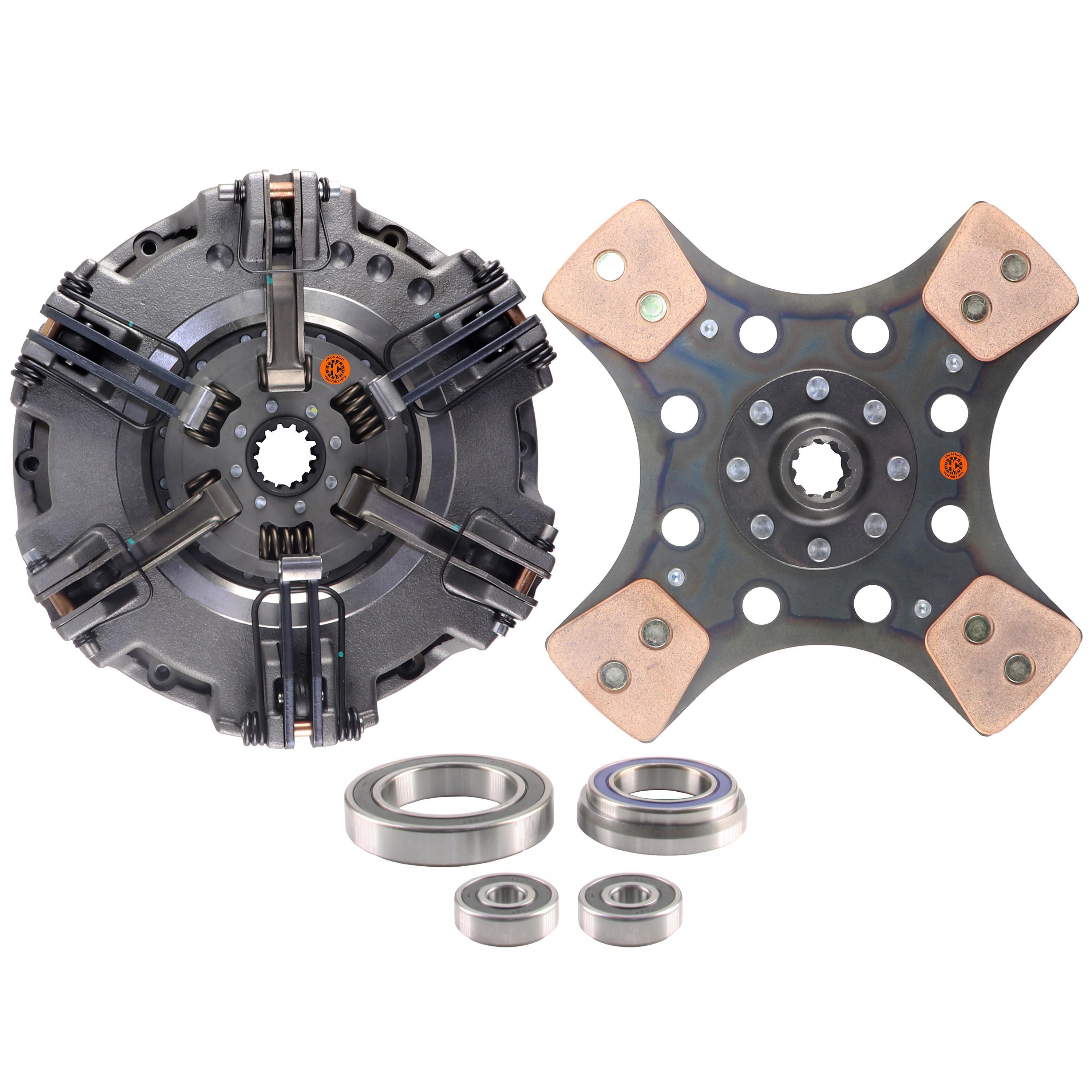

Multiple clutch options, positively identify before ordering. This is a Safety PTO Clutch, check that the flywheel disc is free after installation. Learn more, Safety PTO Clutch Service Guide.Includes: PPA, 6-Pad Captive Disc, F5176450 (Flywheel Disc), 8301080 (Release Bearing), 836015 (Release Bearing), 836303 (Pilot Bearing) & 836203 (Pilot Bearing)The F5196818NU2 KIT 11" LuK Dual Stage Clutch Kit, w/ Bearings - New fits equipment brands such as: Case IH, New Holland

Manufacturer: Hy-Capacity

SKU: F5196818NU2 KIT

Vendor: Hy-Capacity

Availability:

In stock

$888.61

Qty:

+ -

Notes:

We are out of the 30 watt PAR-36 light model until around Jan. 20th 2025. You can order the lights, but the order will not ship before late January. All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Size	11"
Flywheel Step	0.020"
PPA Levers	6
Captive Disc Spec	6 Pad; 1-9/16" 14 Spline Hub; Spring Center
Flywheel Disc Spec	4 Pad; 1" 10 Spline Hub; Solid Center
New/Reman	New
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Size	11"
Flywheel Step	0.020"
PPA Levers	6
Captive Disc Spec	6 Pad; 1-9/16" 14 Spline Hub; Spring Center
Flywheel Disc Spec	4 Pad; 1" 10 Spline Hub; Solid Center
New/Reman	New
Sold As	Each
Warranty	1 Year

Product tags

Safety PTO Clutch - Service Guide (19)

Use On Below Models (Click to expand)

Case IH

Tractor: 100N Farmall w/ 4-Pad Flywheel Disc, Mechanical Shuttle 105N Farmall w/ 4-Pad Flywheel Disc 65C Farmall Yr. 4/08 thru 12/14, w/ 4-Pad Flywheel Disc 75C Farmall Yr. 4/08 thru 12/14, w/ 4-Pad Flywheel Disc 75N Farmall Mechanical Shuttle 85N Farmall Mechanical Shuttle 90CL Farmall Mechanical Shuttle 90N Farmall Mechanical Shuttle 90V Farmall Mechanical Shuttle 95C Farmall Mechanical Shuttle 95N Farmall Mechanical Shuttle JX1060C Mechanical Shuttle JX1070C Mechanical Shuttle JX1070N Mechanical Shuttle JX1075C Mechanical Shuttle JX1075V Mechanical Shuttle JX1085C Mechanical Shuttle JX1095C Mechanical Shuttle JX1095N Mechanical Shuttle

TRACTOR: 100V Farmall w/ 4-Pad Flywheel Disc, Mechanical Shuttle 85C Farmall Mechanical Shuttle, Yr. 01/07 thru 03/14

New Holland

Tractor: T4.100F Yr. 3/16 thru 12/17, w/ 4-Pad Flywheel Disc, Mechanical Shuttle T4.100V Yr. 3/16 thru 12/17, w/ 4-Pad Flywheel Disc, Mechanical Shuttle T4.105V w/ 4-Pad Flywheel Disc, Mechanical Shuttle T4.85F w/ 4-Pad Flywheel Disc, Mechanical Shuttle T4.85V w/ 4-Pad Flywheel Disc, Mechanical Shuttle T4.90F w/ 4-Pad Flywheel Disc, Mechanical Shuttle T4.90LP w/ 4-Pad Flywheel Disc, Mechanical Shuttle T4.90V w/ 4-Pad Flywheel Disc, Mechanical Shuttle T4.95F Mechanical Shuttle T4.95V Mechanical Shuttle T4020 Mechanical Shuttle T4020V Mechanical Shuttle T4030 Mechanical Shuttle T4030F Mechanical Shuttle T4030V Mechanical Shuttle T4040 Mechanical Shuttle T4040F Mechanical Shuttle T4040N Mechanical Shuttle T4040V Mechanical Shuttle T4050 Mechanical Shuttle T4050F Mechanical Shuttle T4050N Mechanical Shuttle T4050V Mechanical Shuttle T4060F w/ 4-Pad Flywheel Disc, Mechanical Shuttle T4060N w/ 4-Pad Flywheel Disc, Mechanical Shuttle T4060V w/ 4-Pad Flywheel Disc, Mechanical Shuttle TN55 Eff. 09/99, Mechanical Shuttle TN60A Eff. 01/03 TN60VA TN65 Eff. 09/99 TN65F w/ 4-Pad Flywheel Disc, Mechanical Shuttle TN65V TN70 Eff. 09/99 TN70A Mechanical Shuttle TN70D Eff. 09/99 TN70NA TN70VA TN75 Eff. 09/99, Mechanical Shuttle TN75A Mechanical Shuttle TN75D Eff. 09/99, Mechanical Shuttle TN75F Mechanical Shuttle TN75V Mechanical Shuttle TN75VA Mechanical Shuttle TN85A Eff. 01/03 TN85DA Eff. 01/03 TN85FA Eff. 01/03 TN85SA Mechanical Shuttle TN90F Eff. 09/97, Orchard Tractor TN95A Eff. 01/03 TN95DA Eff. 01/03 TN95F Eff. 10/01,Orchard Tractor TN95FA Orchard Tractor TN95NA Orchard Tractor, Mechanical Shuttle TN95VA Eff. 01/03
