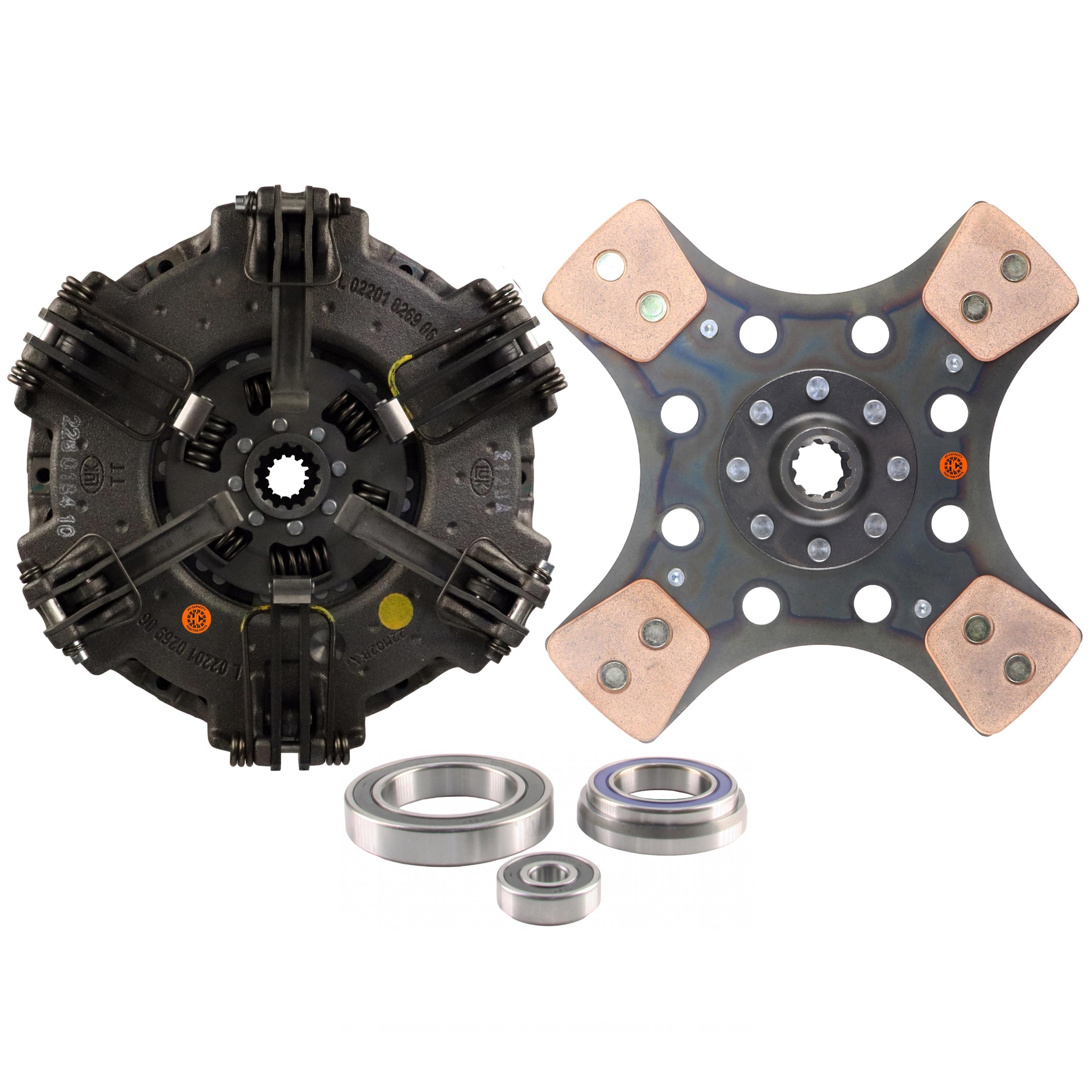

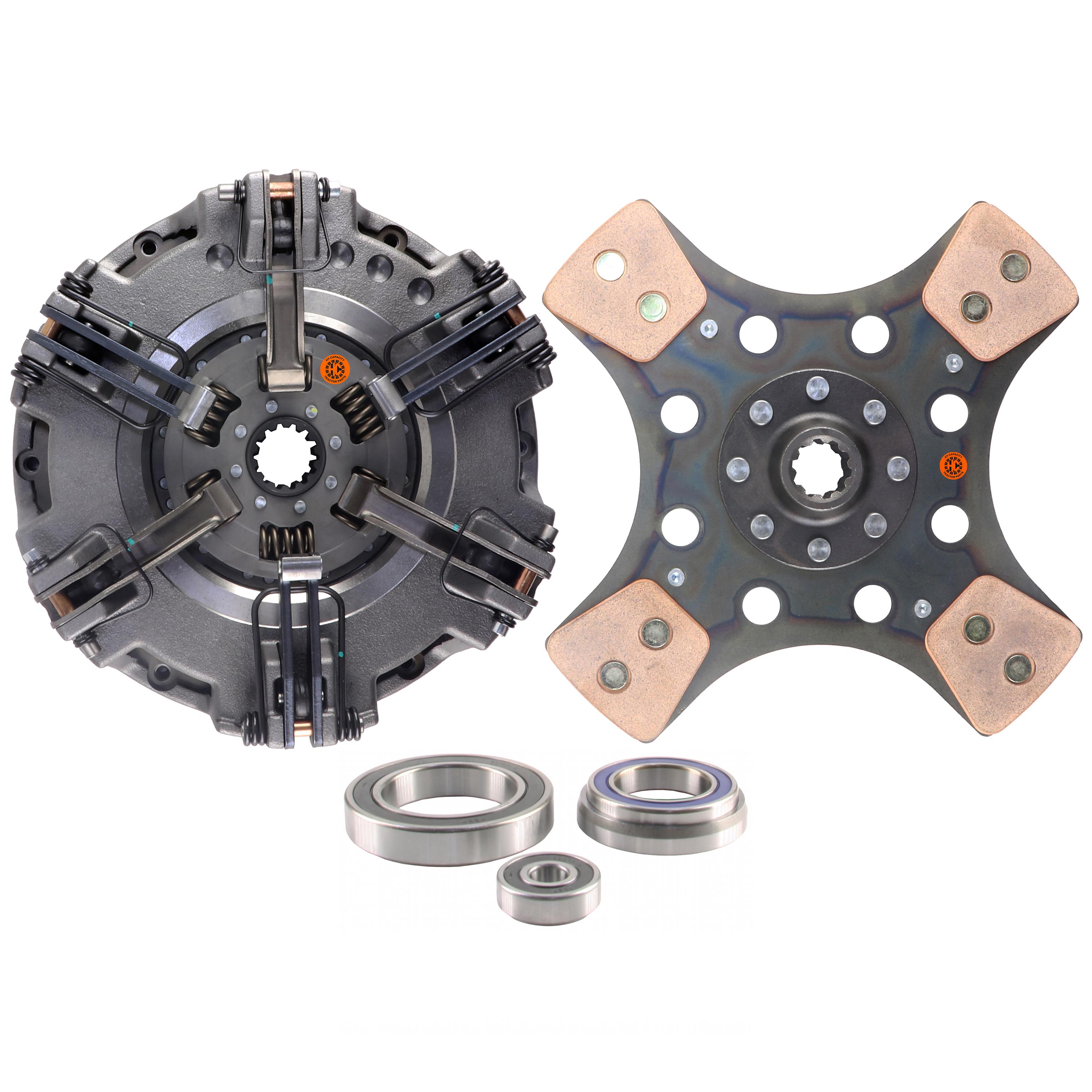

11" LuK Dual Stage Clutch Kit, w/ Bearings - New

Multiple clutch options, positively identify before ordering. This is a Safety PTO Clutch, check that the flywheel disc is free after installation. Learn more, Safety PTO Clutch Service Guide.Includes: PPA, 6-Pad Captive Disc, F5176450 (Flywheel Disc), 8301080 (Release Bearing), 836014 (Release Bearing) & 836303 (Pilot Bearing)The F5196818NU2 KIT1 11" LuK Dual Stage Clutch Kit, w/ Bearings - New fits equipment brands such as: New Holland

Manufacturer: Hy-Capacity

SKU: F5196818NU2 KIT1

Vendor: Hy-Capacity

Availability:

In stock

$888.61

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Size	11"
Flywheel Step	0.020"
PPA Levers	6
Captive Disc Spec	5 Pad; 1-9/16" 14 Spline Hub; Spring Center
Flywheel Disc Spec	4 Pad; 1" 10 Spline Hub; Solid Center
New/Reman	New
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Size	11"
Flywheel Step	0.020"
PPA Levers	6
Captive Disc Spec	5 Pad; 1-9/16" 14 Spline Hub; Spring Center
Flywheel Disc Spec	4 Pad; 1" 10 Spline Hub; Solid Center
New/Reman	New
Sold As	Each
Warranty	1 Year

Product tags

Safety PTO Clutch - Service Guide (19)

Use On Below Models (Click to expand)

New Holland

Tractor: TD60D Mechanical Shuttle, Must Positively Identify Clutch Before Ordering TD70D Mechanical Shuttle, Must Positively Identify Clutch Before Ordering TD80D Mechanical Shuttle, Must Positively Identify Clutch Before Ordering TD90D Mechanical Shuttle, Must Positively Identify Clutch Before Ordering TD95D Mechanical Shuttle

TRACTOR: T4.105F w/ 4-Pad Flywheel Disc, Mechanical Shuttle TD5010 Mechanical Shuttle, also order 1-836203 Pilot Bearing for this model TD5020 Mechanical Shuttle, also order 1-836203 Pilot Bearing for this model TD5030 Mechanical Shuttle, also order 1-836203 Pilot Bearing for this model
