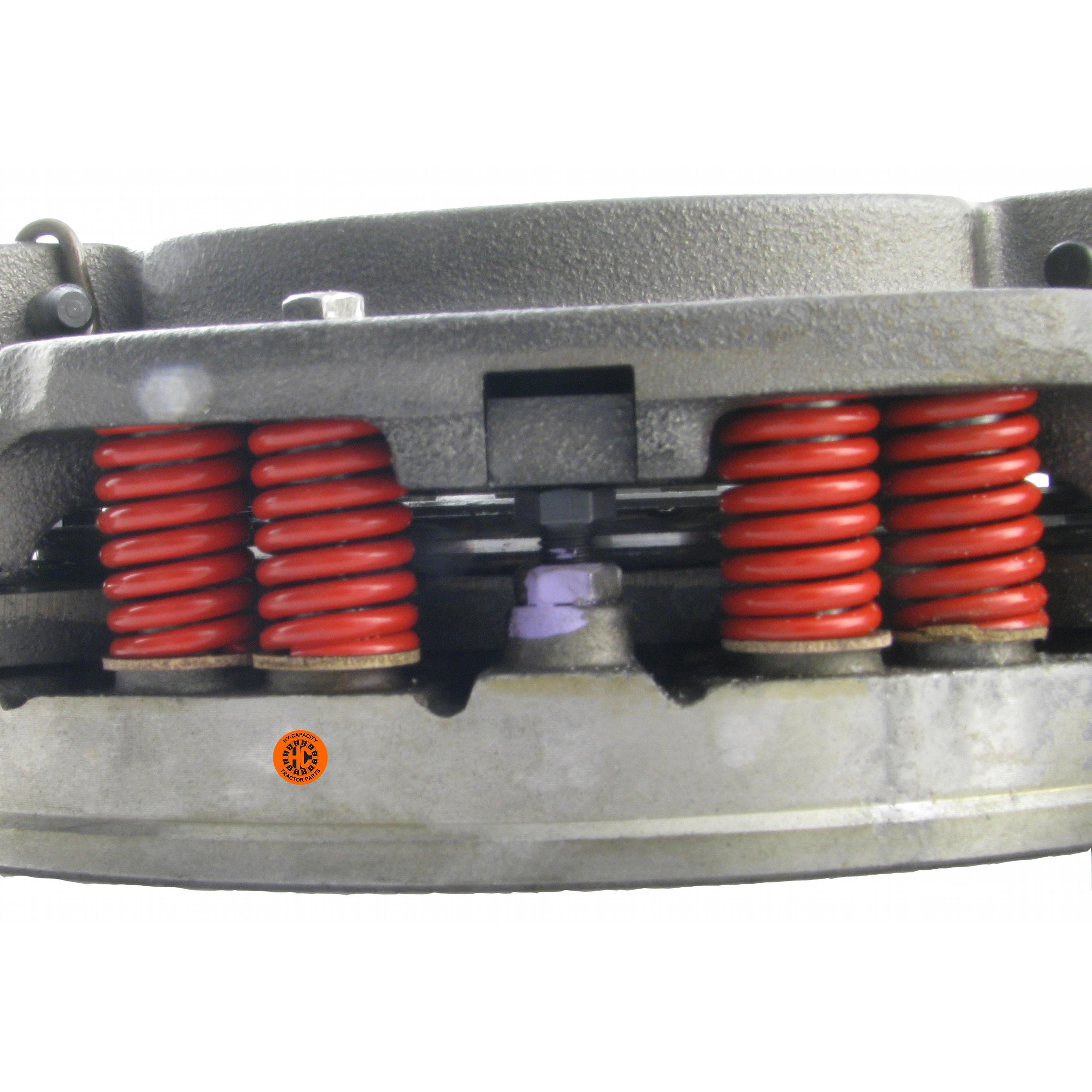

11" Dual Stage Clutch Kit, w/ Bearings & Alignment Tool - New

Quality checked and set to OE specifications in Humboldt, Iowa by a Hy-Capacity Technician. The clutch alignment tool is for installation purposes & is not returnable.Includes: M526664N (PPA), M516068 (Woven Disc), 832505 (Release Bearing), 836203 (Pilot Bearing) & 8301144 (Alignment Tool)The M526664N KIT 11" Dual Stage Clutch Kit, w/ Bearings & Alignment Tool - New fits equipment brands such as: Massey FergusonThe M526664N KIT is a substitute for the following discontinued products: M526664R KIT

Manufacturer: Hy-Capacity

SKU: M526664N KIT

Vendor: Hy-Capacity

Availability:

In stock

$306.96

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Size	11"
Flywheel Step	1.720" + .030" Air Ring = 1.750"
PPA Levers	3
PPA Springs	12 Heavy Coil Springs
Captive Disc Spec	Woven; 1-3/4" 10 Spline Hub; Solid Center
Flywheel Disc Spec	Woven; 1-1/8" 10 Spline Hub; Solid Center
New/Reman	New
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Size	11"
Flywheel Step	1.720" + .030" Air Ring = 1.750"
PPA Levers	3
PPA Springs	12 Heavy Coil Springs
Captive Disc Spec	Woven; 1-3/4" 10 Spline Hub; Solid Center
Flywheel Disc Spec	Woven; 1-1/8" 10 Spline Hub; Solid Center
New/Reman	New
Sold As	Each
Warranty	1 Year

Product tags

526664M91 (2)
,
506898M92 (2)
,
512357M92 (2)
,
512357M92 (1)
,
526664M91 (1)
,
526664NKIT (1)

Use On Below Models (Click to expand)

Massey Ferguson

Tractor: 165 165 U.K. 175 175 U.K. 180 65 MF30 MF302 MF304 MF31 MF3165
