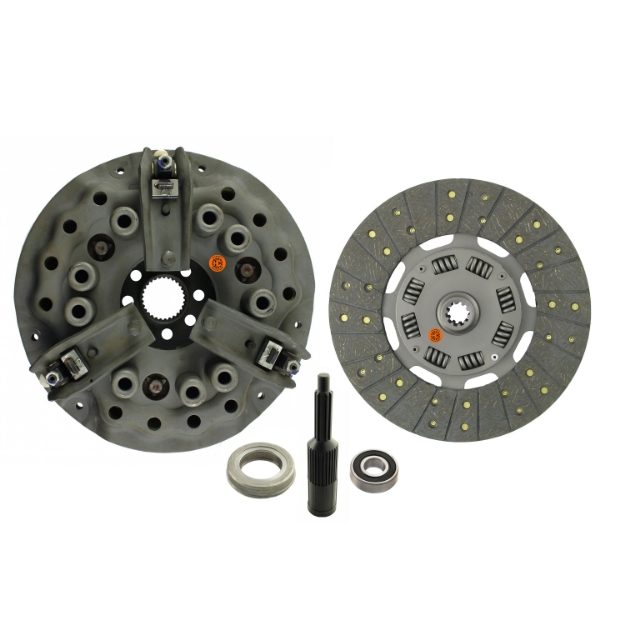

11" Dual Stage Clutch Kit, w/ 10 Spline Transmission Disc, Bearings & Alignment Tool - New

The clutch alignment tool is for installation purposes & is not returnable.Includes: FD802AA (Dual Stage PPA) FC7641B (PTO Disc), FE350AASPG (Transmission Disc), 832505 (Release Bearing), 836203 (Pilot Bearing) & 8301139 (Alignment Tool)The FD802AA KIT 11" Dual Stage Clutch Kit, w/ 10 Spline Transmission Disc, Bearings & Alignment Tool - New fits equipment brands such as: Farmtrac, Ford

Manufacturer: Hy-Capacity

SKU: FD802AA KIT

Vendor: Hy-Capacity

Availability:

In stock

$402.57

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Size	11"
Flywheel Step	1.750"
Spline Count	10
PPA Levers	3
PPA Springs	9 Coil Springs
Captive Disc Spec	Woven; 1-7/8" 29 Spline Hub; Solid Center
Flywheel Disc Spec	Woven; 1" 10 Spline Hub; Spring Center
New/Reman	New
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Size	11"
Flywheel Step	1.750"
Spline Count	10
PPA Levers	3
PPA Springs	9 Coil Springs
Captive Disc Spec	Woven; 1-7/8" 29 Spline Hub; Solid Center
Flywheel Disc Spec	Woven; 1" 10 Spline Hub; Spring Center
New/Reman	New
Sold As	Each
Warranty	1 Year

Product tags

FD802AA KIT - Instruction Guide (1)

Use On Below Models (Click to expand)

Farmtrac

Tractor: 35 45 50 60

Ford

Tractor: 2000 10/71 - 9/75 2100 2110 2120 2300 230A 231 2310 234 2600 2610 3000 3055 3100 3110 3120 3190 3300V 3310N 3330NO 334 3600 3610 4000 4100 4110 530A 531
