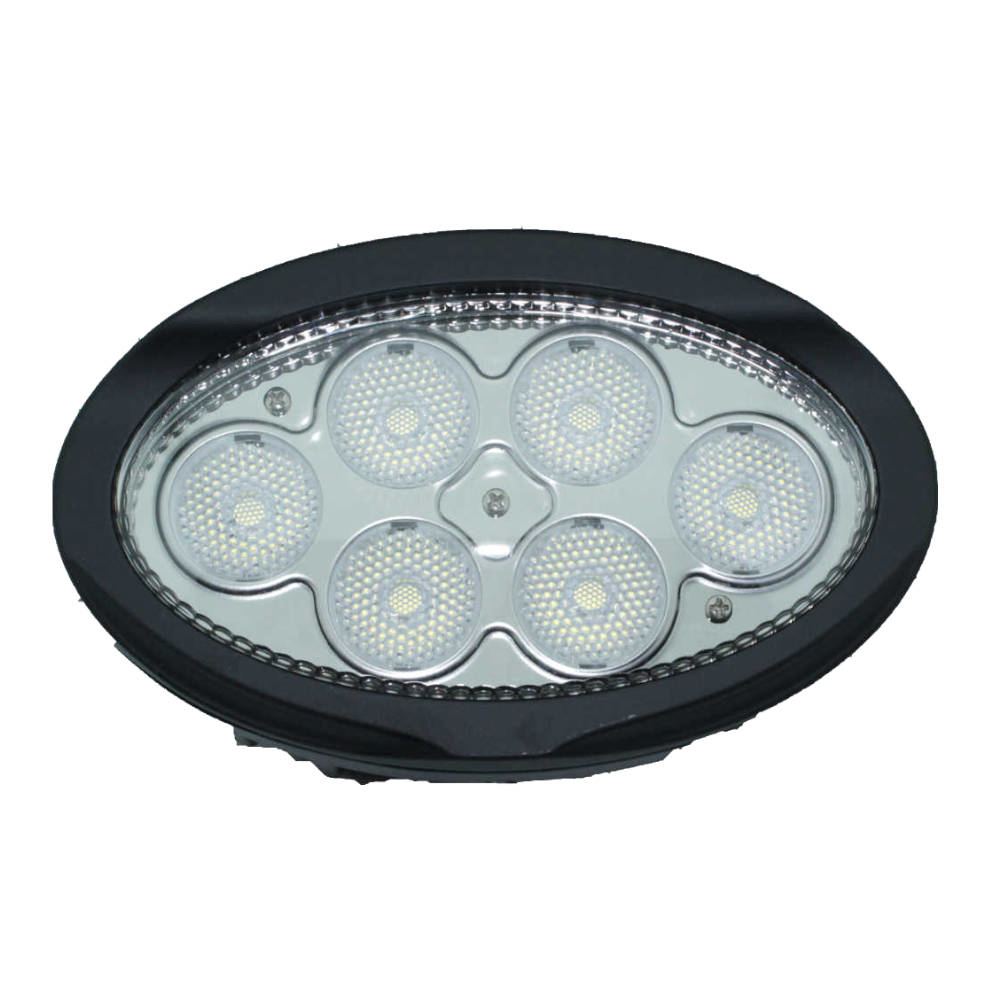

LED-665 Oval LED Light (TO BE DISCONTINUED - NEW MODEL LED-765)

6 review(s) | Add your review

LED-665 is a 4x6 style Oval LED work light. 6 CREE LED's at 10 watt each, 4100 lumens, 5000k, and only 3.6 amp use. Select the light beam type, then select the bracket you need for your application. Comes with a 7" adapter cable that fits 9005 or H11 connectors. You can find more adapter cables at the bottom of this page.

SKU: LED-665 series

Beam style: *

LED-665 Oval, 60° flood beam
LED-665 40° beam

Bracket style: *

"Solid" Mount Bracket (Fits into 1 3/8" bracket / U clamp)

$78.00

Qty:

+ -

Product Files

Install Instructions

Bracket install on LED-660 and 665

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Overview

LED-665 Oval Series

The LED-665 Oval series of lights are all 60-watt CREE LED lights. 4100 lumen at 5000k. This is a very powerful light that will work for many applications.

The light can be ordered as a side mount or a bottom mount light, 15, 40, 60 or 80-degree beam. Fits many tractors and combines that use a rectangular 4x6 style light.

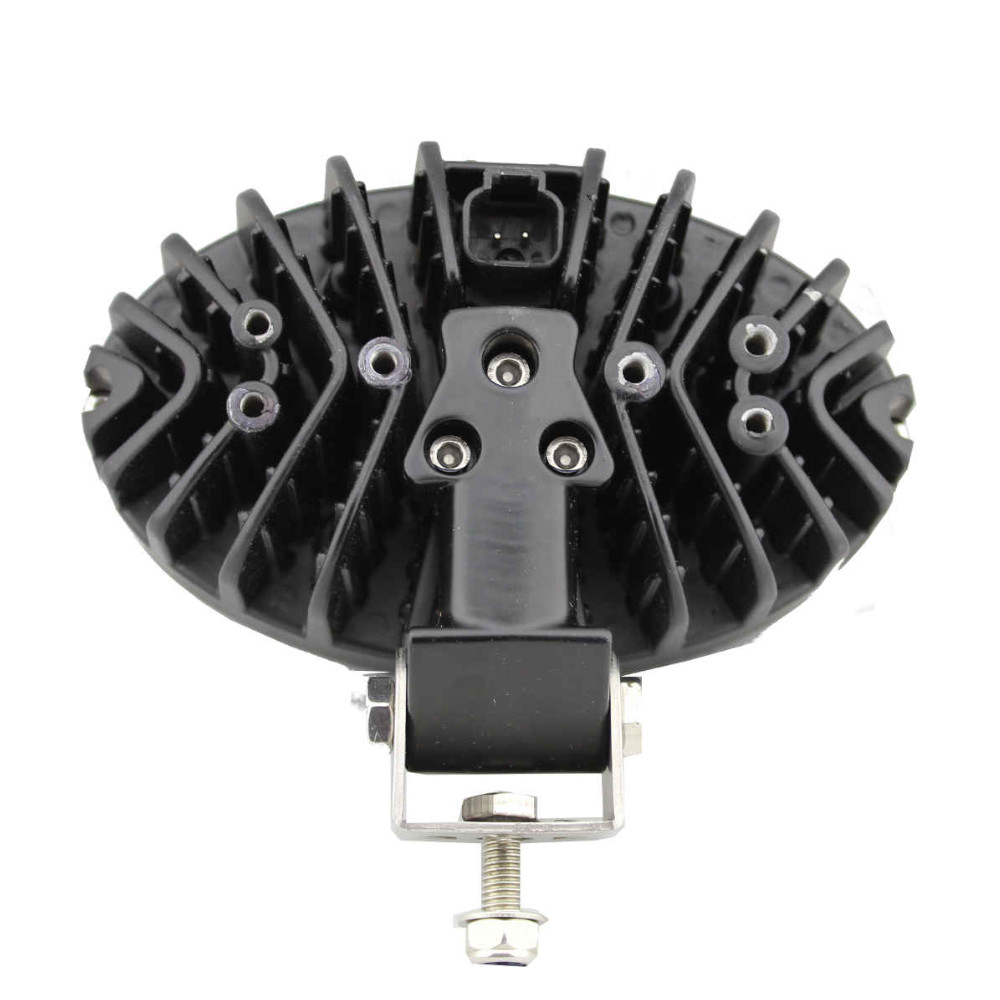

The 1" Ball mount for some JD tractors, and the new "Solid" mount for mounting into existing "U" clamps on some tractors and combines can be ordered below. (extra)

The "Solid mount" is a 1 3/8" wide mount that will fit into OEM "U" clamps on many tractors and combines.

The 1" ball mount is for the JD 7000 and 8000 series tractors using the ball mount brackets.

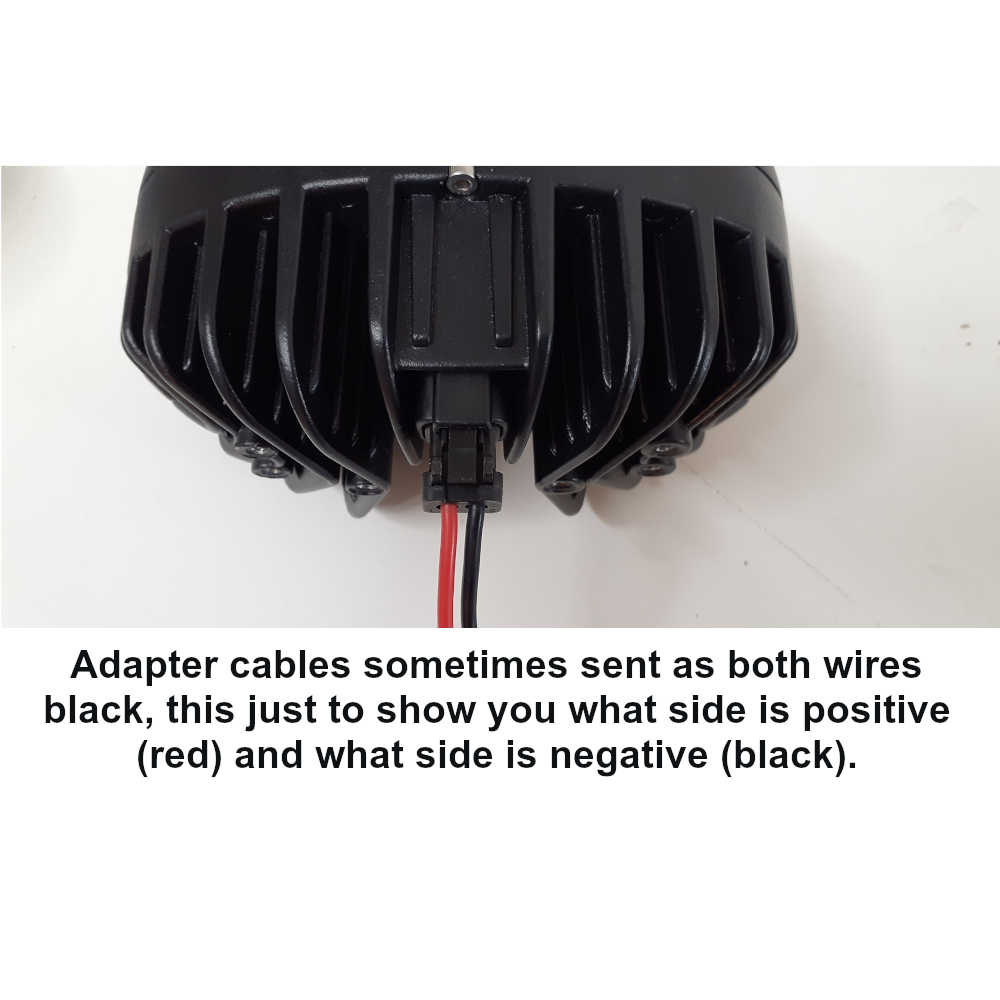

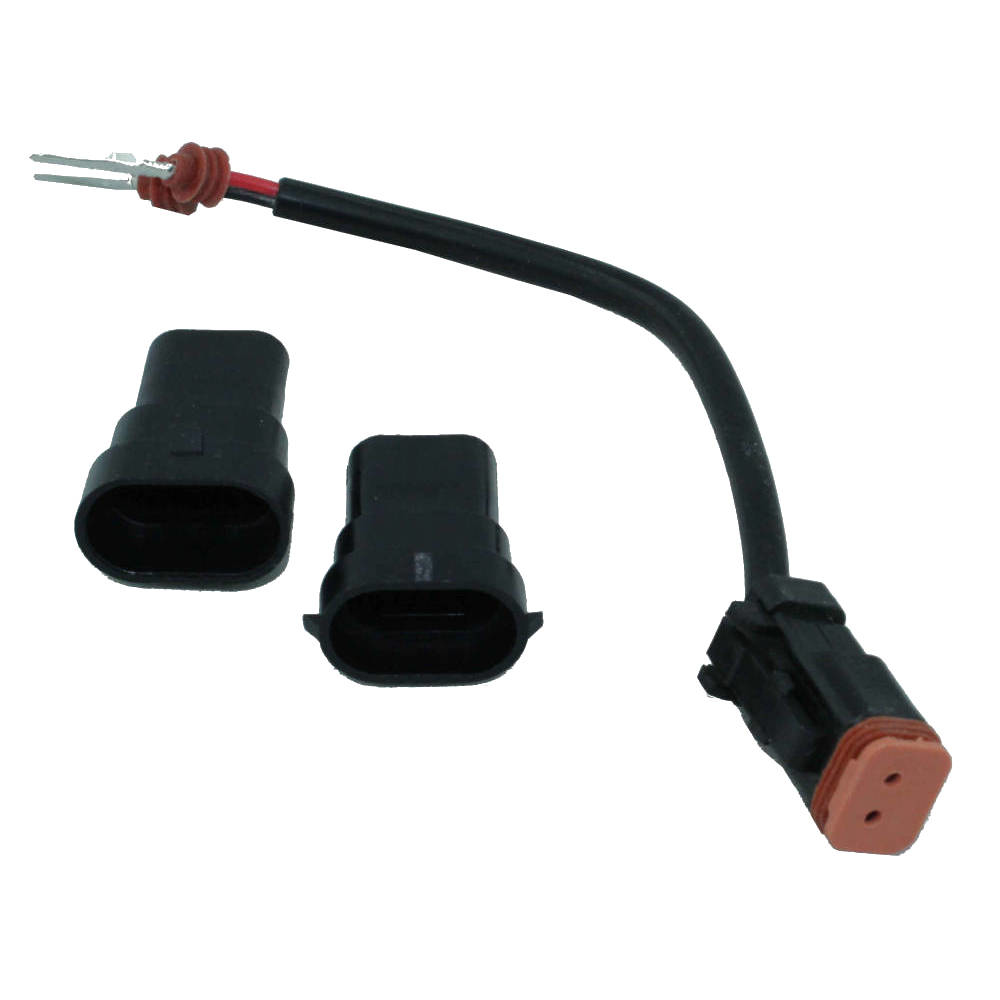

Integrated Deutsch connector, and comes with an adaptor cable for 880 series and 9005 bulb connectors. Adaptor cables for other connectors can be ordered on the bottom of the page if needed, or by following this link: adapter cables

Spec's

Watt : 60 watt - 6 x 10 watt CREE Xlamp XM-L2 LED's
Size : 6 3/8 x 3 7/8 x 3.1 inch. (without mounting bracket)
Power use : 43 watt
Lumen : 4800 raw, 4100 Effective
Volt : 10-30 volt
IP : 68
Kelvin color : 5000-5500k
Life time : >30000 hours
Warranty : 3 years.

In the case of paint in the mounting holes, a 5mm 0.8 tap can be used to clean the holes.

LED 666, LED-666, Oval, LED666, LED665, LED-665, 86044306 Buhler Versatile, LL0402, LL0463, LL0400, LL0401, LL0465

LED-665 Oval Series

The LED-665 Oval series of lights are all 60-watt CREE LED lights. 4100 lumen at 5000k. This is a very powerful light that will work for many applications.

The light can be ordered as a side mount or a bottom mount light, 15, 40, 60 or 80-degree beam. Fits many tractors and combines that use a rectangular 4x6 style light.

The 1" Ball mount for some JD tractors, and the new "Solid" mount for mounting into existing "U" clamps on some tractors and combines can be ordered below. (extra)

The "Solid mount" is a 1 3/8" wide mount that will fit into OEM "U" clamps on many tractors and combines.

The 1" ball mount is for the JD 7000 and 8000 series tractors using the ball mount brackets.

Spec's

Watt : 60 watt - 6 x 10 watt CREE Xlamp XM-L2 LED's
Size : 6 3/8 x 3 7/8 x 3.1 inch. (without mounting bracket)
Power use : 43 watt
Lumen : 4800 raw, 4100 Effective
Volt : 10-30 volt
IP : 68
Kelvin color : 5000-5500k
Life time : >30000 hours
Warranty : 3 years.

In the case of paint in the mounting holes, a 5mm 0.8 tap can be used to clean the holes.

LED 666, LED-666, Oval, LED666, LED665, LED-665, 86044306 Buhler Versatile, LL0402, LL0463, LL0400, LL0401, LL0465

Product tags

JD (117)
,
CaseIH (47)
,
Jd CaseIH Sidemount (2)
,
Side mount (9)

Use On Below Models (Click to expand)

Case IH

Combine: 5088 5130 5140 6088 6140 7010 7088 7120 7130 7140 7230 8010 8120 8230 8240 9120 9130 9230 9240

Tractor: JX100U side mount or bottom mount JX1060C side mount or bottom mount JX1070C side mount or bottom mount JX1070N side mount or bottom mount JX1070U side mount or bottom mount JX1075C side mount or bottom mount JX1075N side mount or bottom mount JX1075V side mount or bottom mount JX1080U side mount or bottom mount JX1085C side mount or bottom mount JX1090U side mount or bottom mount JX1095C side mount or bottom mount JX1095N side mount or bottom mount JX1100U side mount or bottom mount JX55 side mount or bottom mount JX60 side mount or bottom mount JX65 side mount or bottom mount JX70 side mount or bottom mount JX70U side mount or bottom mount JX75 side mount or bottom mount JX80 side mount or bottom mount JX80U side mount or bottom mount JX85 side mount or bottom mount JX90 side mount or bottom mount JX90U side mount or bottom mount JX95 side mount or bottom mount JXU105 side mount or bottom mount JXU115 side mount or bottom mount JXU75 side mount or bottom mount JXU85 side mount or bottom mount JXU95 side mount or bottom mount

Challenger

Tractor: MT425B Cab Front & Rear, Mid-Body MT425B MT445B Cab Front & Rear, Mid-Body MT445B MT445D MT455B MT455B Cab Front & Rear, Mid-Body MT455D Cab Front & Rear, Mid-Body MT455D MT465B Cab Front & Rear, Mid-Body MT465B MT465D MT465D Cab Front & Rear, Mid-Body MT475B MT475D MT475D Cab Front & Rear, Mid-Body MT485D Cab Front & Rear, Mid-Body MT485D MT495D MT495D Cab Front & Rear, Mid-Body MT515D Cab Front & Rear, Mid-Body MT515D MT515E MT525B Cab Front & Rear, Mid-Body MT525B MT525D Cab Front & Rear, Mid-Body MT525D MT535B MT535B Cab Front & Rear, Mid-Body MT535D MT535D Cab Front & Rear, Mid-Body MT545B MT545B Cab Front & Rear, Mid-Body MT545D Cab Front & Rear, Mid-Body MT545D MT545E MT555B Cab Front & Rear, Mid-Body MT555B MT555D MT555D Cab Front & Rear, Mid-Body MT555E MT565B Cab Front & Rear, Mid-Body MT565B MT565D MT565D Cab Front & Rear, Mid-Body MT565E MT575B Cab Front & Rear, Mid-Body MT575B MT575D MT575D Cab Front & Rear, Mid-Body MT575E MT585B MT585B Cab Front & Rear, Mid-Body MT585D Cab Front & Rear, Mid-Body MT585D MT585E MT595B Cab Front & Rear, Mid-Body MT595B MT595D MT635B MT635B Cab Front & Rear, Mid-Body MT645B Cab Front & Rear, Mid-Body MT645B MT645C Cab Front & Rear, Mid-Body MT645C MT645D MT645E MT655B Cab Front & Rear, Mid-Body MT655B MT655C MT655C Cab Front & Rear, Mid-Body MT655D MT665B MT665B Cab Front & Rear, Mid-Body MT665C Cab Front & Rear, Mid-Body MT665E MT675C MT675C Cab Front & Rear, Mid-Body MT675D MT675E MT685C MT685C Cab Front & Rear, Mid-Body MT685D MT685E MT745B Cab Front & Rear, Mid-Body MT745C Cab Front & Rear, Mid-Body MT745D Cab Front & Rear, Mid-Body MT755B Cab Front & Rear, Mid-Body MT755C Cab Front & Rear, Mid-Body MT755D Cab Front & Rear, Mid-Body MT755E Cab Front & Rear, Mid-Body MT765B Cab Front & Rear, Mid-Body MT765C Cab Front & Rear, Mid-Body MT765D Cab Front & Rear, Mid-Body MT765E Cab Front & Rear, Mid-Body MT775E Cab Front & Rear, Mid-Body MT835B Cab Front & Rear, Mid-Body MT835C Cab Front & Rear, Mid-Body MT845B Cab Front & Rear, Mid-Body MT845C Cab Front & Rear, Mid-Body MT845E Cab Front & Rear, Mid-Body MT855B Cab Front & Rear, Mid-Body MT855C Cab Front & Rear, Mid-Body MT855E Cab Front & Rear, Mid-Body MT865B Cab Front & Rear, Mid-Body MT865C Cab Front & Rear, Mid-Body MT865E Cab Front & Rear, Mid-Body MT875B Cab Front & Rear, Mid-Body MT875C Cab Front & Rear, Mid-Body MT875E Cab Front & Rear, Mid-Body MT945B Cab Front & Rear, Mid-Body MT945C Cab Front & Rear, Mid-Body MT955B Cab Front & Rear, Mid-Body MT955C Cab Front & Rear, Mid-Body MT955E Cab Front & Rear, Mid-Body MT965B Cab Front & Rear, Mid-Body MT965C Cab Front & Rear, Mid-Body MT965E Cab Front & Rear, Mid-Body MT975B Cab Front & Rear, Mid-Body MT975C Cab Front & Rear, Mid-Body MT975E Cab Front & Rear, Mid-Body

Gehl

Skid Steer Loader: 3640E 3840 4240E

John Deere

Combine: 9540iWTS Eff. S/N 078556, Cab Lamp 9540WTS Eff. S/N 078556, Cab Lamp 9560 S/N 715601->, Cab Lamp 9560iWTS Eff. S/N 078556, Cab Lamp 9560SH Eff. S/N 715101, Cab Lamp 9560STS S/N 715301->, Cab Lamp 9560WTS Eff. S/N 078556, Cab Lamp 9570STS Upper Fascia lamp 9580iWTS Eff. S/N 078556, Cab Lamp 9580WTS Eff. S/N 078556, Cab Lamp 9640iWTS Eff. S/N 078556, Cab Lamp 9640WTS Eff. S/N 078556, Cab Lamp 9660 S/N 715201->, Cab Lamp 9660iWTS Eff. S/N 078556, Cab Lamp 9660STS S/N 715601->, Cab Lamp 9660WTS S/N 078556->, Cab Lamp 9670STS Upper Fascia lamp 9680iWTS S/N 078556->, Cab Lamp 9680WTS S/N 078556->, Cab Lamp 9760STS S/N 715401->, Cab Lamp 9770STS Upper Fascia lamp 9780CTS S/N 078556->, Cab Lamp 9780iCTS S/N 078556->, Cab Lamp 9860STS S/N 715601->, Cab Lamp 9870STS Upper Fascia lamp C670 Upper Fascia lamp S550 Upper Fascia lamp S650 Upper Fascia lamp S660 Upper Fascia lamp S670 Upper Fascia lamp S670 Hillmaster Upper Fascia lamp S680 Upper Fascia lamp S680 Hillmaster Upper Fascia lamp S690 Upper Fascia lamp S690 Hillmaster Upper Fascia lamp S760 Upper Fascia lamp S770 Upper Fascia lamp S780 Upper Fascia lamp S790 Upper Fascia lamp T550 Upper Fascia lamp, Prior to Model Year 2011 T560 Upper Fascia lamp, Prior to Model Year 2011 T660 Upper Fascia lamp, Prior to Model Year 2011 T670 Upper Fascia lamp, Prior to Model Year 2011 W540 Upper Fascia lamp, Prior to Model Year 2011 W550 Upper Fascia lamp, Prior to Model Year 2011 W650 Upper Fascia lamp, Prior to Model Year 2011 W660 Upper Fascia lamp, Prior to Model Year 2011

Cotton Picker: 7660 Upper Fascia lamp 7760 Upper Fascia lamp 9996 Eff. S/N 020001, Cab Lamp CP690 Upper Fascia lamp

Cotton Stripper: 7460 Eff. S/N 20001, Cab Lamp CS690 Upper Fascia lamp

Harvester: 3510 Cab Lamp 3520 Cab Lamp 7180 Cab Lamp 7200 Eff. S/N 508100, Cab Lamp 7250 Cab Lamp 7280 Cab Lamp 7300 Eff. S/N 508100, Cab Lamp 7350 Cab Lamp 7380 Cab Lamp 7400 Eff. S/N 508100, Cab Lamp 7450 Cab Lamp 7480 Cab Lamp 7550 Cab Lamp 7580 Cab Lamp 7700 Eff. S/N 508100, Cab Lamp 7750 Cab Lamp 7780 Cab Lamp 7800 Eff. S/N 508100, Cab Lamp 7850 Cab Lamp 7950 Cab Lamp 7980 Cab Lamp 8100 Cab Lamp 8200 Cab Lamp 8300 Cab Lamp 8400 Cab Lamp 8500 Cab Lamp 8600 Cab Lamp 8700 Cab Lamp 9600 Cab Lamp 9700 Cab Lamp 9800 Cab Lamp 9900 Cab Lamp

Sprayer: 4630 Steering & Platform 4710 Cab, Steering & Platform 4720 Cab, Steering, Mid-Body & Platform 4730 Cab, Steering & Platform 4830 Cab, Steering & Platform 4920 Cab, Steering, Platform, Step 4930 Cab, Steering & Platform 4940 Cab & Field R4023 Cab Front & Rear, Mid-Body, Fender Rear R4030 Boom, Field & Platform (w/ Eng. 6068HN060-6068HN059) R4030 Cab Front & Rear, Mid-Body, Fender Rear R4038 Boom, Field & Platform (w/ Eng. 6090HN007-6090HN008) R4038 Cab Front & Rear, Mid-Body, Fender Rear R4045 Boom, Field & Platform (w/ Eng. 6090HN007-6090HN008) R4045 Cab Front & Rear, Mid-Body, Fender Rear

Tractor: 1023E 1025R 1026R 2025R 2026R 2032R 2038R 2305 2320 2520 2720 3025D 3025E 3032E 3033R 3035D 3038E 3039R 3043D 3046R 3120 3203 3320 3520 3720 4044M 4044R 4049M 4049R 4052M 4052R 4066M 4066R 4105 4120 4320 4520 4720 5090R Cab Front & Rear, Mid-Body, Fender Rear 5090R 5100R 5100R Cab Front & Rear, Mid-Body, Fender Rear 5115R 5115R Cab Front & Rear, Mid-Body, Fender Rear 5125R 5125R Cab Front & Rear, Mid-Body, Fender Rear 6105R Interim Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6110R Final Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6115R Interim Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6120R Final Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6125R Interim Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6130R Final Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6140R Interim Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6145R Final Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6150R Interim Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6150RH Interim Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6155R Final Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6155RH Final Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6170R Interim Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6175R Final Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6190R Interim Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6195R Final Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6210R Interim Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 6215R Final Tier 4, Cab Front & Rear, Mid-Body, Fender Rear 7130 7200R Eff. S/N 080001, Cab Front & Rear, Mid-Body, Fender Rear 7210R Eff. S/N 080001, Cab Front & Rear, Mid-Body, Fender Rear 7215R Eff. S/N 080001, Cab Front & Rear, Mid-Body, Fender Rear 7220 7230 7230R Eff. S/N 080001, Cab Front & Rear, Mid-Body, Fender Rear 7250R Eff. S/N 080001, Cab Front & Rear, Mid-Body, Fender Rear 7260R Eff. S/N 080001, Cab Front & Rear, Mid-Body, Fender Rear 7270R Eff. S/N 080001, Cab Front & Rear, Mid-Body, Fender Rear 7280R Eff. S/N 080001, Cab Front & Rear, Mid-Body, Fender Rear 7290R Eff. S/N 080001, Cab Front & Rear, Mid-Body, Fender Rear 7310R Eff. S/N 080001, Cab Front & Rear, Mid-Body, Fender Rear 7320 7330 7420 7520 7630 Cab, Steering, Mid-Body & Platform 7720 Cab, Mid-Body & Fender Rear, w/o Loader 7730 Cab, Steering, Mid-Body & Platform 7820 Cab, Mid-Body & Fender Rear, w/o Loader 7830 Cab, Steering, Mid-Body & Platform 7920 Cab, Mid-Body & Fender Rear, w/o Loader 7930 Cab, Steering, Mid-Body & Platform 8120 Cab, Steering, Mid-Body & Platform 8120T Cab, Steering, Mid-Body & Platform 8130 Cab, Steering, Mid-Body & Platform 8220 Cab, Steering, Mid-Body & Platform 8220T Cab, Steering, Mid-Body & Platform 8225R Eff. S/N 080001, Cab Front & Rear, Mid-Body, Fender Rear 8230 Cab, Steering, Mid-Body & Platform 8230T Cab, Steering, Mid-Body & Platform 8235R Eff. S/N 080001, Cab Front & Rear, Mid-Body, Fender Rear 8245R Eff. S/N 090001, Cab Front & Rear, Mid-Body, Fender Rear 8260R Eff. S/N 080001, Cab Front & Rear, Mid-Body, Fender Rear 8270R Cab Front & Rear, Mid-Body, Fender Rear 8285R Eff. S/N 090001, Cab Front & Rear, Mid-Body, Fender Rear 8295R Cab Front & Rear, Mid-Body, Fender Rear 8295RT Eff. S/N 090001, Cab Front & Rear, Mid-Body, Fender Rear 8310R Eff. S/N 090001, Cab Front & Rear, Mid-Body, Fender Rear 8310RT Eff. S/N 090001, Cab Front & Rear, Mid-Body, Fender Rear 8320 Cab, Steering, Mid-Body & Platform 8320R Cab Front & Rear, Mid-Body, Fender Rear 8320RT Cab Front & Rear, Mid-Body, Fender Rear 8320T Cab, Steering, Mid-Body & Platform 8330 Cab, Steering, Mid-Body & Platform 8330T Cab, Steering, Mid-Body & Platform 8335R Cab Front & Rear, Mid-Body, Fender Rear 8335RT Eff. S/N 090001, Cab Front & Rear, Mid-Body, Fender Rear 8345R Eff. S/N 090001, Cab Front & Rear, Mid-Body, Fender Rear 8345RT Eff. S/N 912001, Cab Front & Rear, Mid-Body, Fender Rear 8360R Eff. S/N 912001, Cab Front & Rear, Mid-Body, Fender Rear 8360RT Eff. S/N 912001, Cab Front & Rear, Mid-Body, Fender Rear 8370R Eff. S/N 090001, Cab Front & Rear, Mid-Body, Fender Rear 8370RT Eff. S/N 912001, Cab Front & Rear, Mid-Body, Fender Rear 8420 Cab, Steering, Mid-Body & Platform 8420T Cab, Steering, Mid-Body & Platform 8430 2006 - 09, Cab, Mid-Body & Fender Rear, w/o Loader 8430T Cab, Steering, Mid-Body & Platform 8520 Cab, Steering, Mid-Body & Platform 8520T Cab, Steering, Mid-Body & Platform 8530 Cab, Steering, Mid-Body & Platform 9120 Cab & Fender Rear 9220 Cab & Fender Rear 9230 Cab & Fender Rear 9320 Cab & Fender Rear 9320T Cab & Fender Rear 9330 Cab & Fender Rear 9360R Eff. S/N 015000, Cab Front & Rear, Mid-Body, Fender Rear 9370R Eff. S/N 015000, Cab Front & Rear, Mid-Body, Fender Rear 9410R Eff. S/N 015000, Cab Front & Rear, Mid-Body, Fender Rear 9420 Cab & Fender Rear 9420R Eff. S/N 015000, Cab Front & Rear, Mid-Body, Fender Rear 9420T Cab & Fender Rear 9430 Cab & Fender Rear 9430T Cab & Fender Rear 9460R Eff. S/N 015000, Cab Front & Rear, Mid-Body, Fender Rear 9460RT Eff. S/N 015000, Cab Front & Rear, Mid-Body, Fender Rear 9470R Eff. S/N 015000, Cab Front & Rear, Mid-Body, Fender Rear 9470RT Eff. S/N 906000, Cab Front & Rear, Mid-Body, Fender Rear 9510R Cab Front & Rear, Mid-Body, Fender Rear 9510RT Cab Front & Rear, Mid-Body, Fender Rear 9520 Cab & Fender Rear 9520R Eff. S/N 015000, Cab Front & Rear, Mid-Body, Fender Rear 9520RT Eff. S/N 906000, Cab Front & Rear, Mid-Body, Fender Rear 9520RX Cab Front & Rear, Mid-Body, Fender Rear 9520T Cab & Fender Rear 9530 Cab & Fender Rear 9530T Cab & Fender Rear 9560R Cab Front & Rear, Mid-Body, Fender Rear 9560RT Cab Front & Rear, Mid-Body, Fender Rear 9570R Eff. S/N 015000, Cab Front & Rear, Mid-Body, Fender Rear 9570RT Eff. S/N 906000, Cab Front & Rear, Mid-Body, Fender Rear 9570RX Cab Front & Rear, Mid-Body, Fender Rear 9620 Cab & Fender Rear 9620R Eff. S/N 015000, Cab Front & Rear, Mid-Body, Fender Rear 9620RX Cab Front & Rear, Mid-Body, Fender Rear 9620T Cab & Fender Rear 9630 Cab & Fender Rear 9630T Cab & Fender Rear

Windrower: 4895 Eff. S/N 320001, Cab Lamp 4995 Eff. S/N 320001, Cab Lamp A400 Cab Lamp D450 Cab Lamp R450 Cab Lamp

Massey Ferguson

Tractor: 4707 4708 5425 Cab Front & Rear, Mid-Body 5435 Cab Front & Rear, Mid-Body 5445 Cab Front & Rear, Mid-Body 5450 Cab Front & Rear, Mid-Body 5455 Cab Front & Rear, Mid-Body 5460 Cab Front & Rear, Mid-Body 5465 Cab Front & Rear, Mid-Body 5470 Cab Front & Rear, Mid-Body 5475 Cab Front & Rear, Mid-Body 5480 Cab Front & Rear, Mid-Body 5609 Cab Front & Rear, Mid-Body 5610 Cab Front & Rear, Mid-Body 5611 Cab Front & Rear, Mid-Body 5612 Cab Front & Rear, Mid-Body 5613 Cab Front & Rear, Mid-Body 6350 6360 6445 Cab Front & Rear, Mid-Body 6455 Cab Front & Rear, Mid-Body 6460 Cab Front & Rear, Mid-Body 6465 Cab Front & Rear, Mid-Body 6475 Cab Front & Rear, Mid-Body 6480 Cab Front & Rear, Mid-Body 6485 Cab Front & Rear, Mid-Body 6490 Cab Front & Rear, Mid-Body 6495 Cab Front & Rear, Mid-Body 6497 Cab Front & Rear, Mid-Body 6499 Cab Front & Rear, Mid-Body 6614 6615 6616 7465 Cab Front & Rear, Mid-Body 7475 Cab Front & Rear, Mid-Body 7480 Cab Front & Rear, Mid-Body 7485 Cab Front & Rear, Mid-Body 7490 Cab Front & Rear, Mid-Body 7495 Cab Front & Rear, Mid-Body 7497 Cab Front & Rear, Mid-Body 7499 Cab Front & Rear, Mid-Body 7614 7615 7616 7618 7620 7622 7624 7626 7714 7715 7716 7718 7719 7720 7722 7724 7726 8450 Cab Front & Rear, Mid-Body 8460 Cab Front & Rear, Mid-Body 8470 Cab Front & Rear, Mid-Body 8480 Cab Front & Rear, Mid-Body 8650 8660 8670 8680 8690 8727 8730 8735 8735 8737

SpraCoupe

Sprayer: 7450 7460 7650 7655 7660

Versatile

Sprayer: SP235 Cab Front & Rear, Fender Rear SP275 Cab Front & Rear, Fender Rear SX240 Cab Front & Rear, Fender Rear SX280 Cab Front & Rear, Fender Rear

Tractor: 190 220 250 260 Cab Front & Rear, Fender Rear 265 Cab Front & Rear, Fender Rear 270 Cab Front & Rear, Fender Rear 275 Cab Front & Rear, Fender Rear 290 Cab Front & Rear, Fender Rear 295 Cab Front & Rear, Fender Rear 300 Cab Front & Rear, Fender Rear 305 Cab Front & Rear, Fender Rear 310 Cab Front & Rear, Fender Rear 315 Cab Front & Rear, Fender Rear 320 Cab Front & Rear, Fender Rear 335 Fender Rear 340 Cab Front & Rear, Fender Rear 350 Cab Front & Rear, Fender Rear 360 Fender Rear 365 Fender Rear 370 Cab Front & Rear, Fender Rear 375 Cab Front & Rear, Fender Rear 380 Cab Front & Rear, Fender Rear 395 Cab Front & Rear, Fender Rear 400 Cab Front & Rear, Fender Rear 405 Cab Front & Rear, Fender Rear 425 Cab Front & Rear, Fender Rear 430 Cab Front & Rear, Fender Rear 450 Cab Front & Rear, Fender Rear 460 Cab Front & Rear, Fender Rear 500 Cab Front & Rear, Fender Rear 520 Cab Front & Rear, Fender Rear 550 Cab Front & Rear, Fender Rear 570 Cab Front & Rear, Fender Rear 575 Eff. S/N 704000, Cab Front & Rear, Fender Rear 610 Cab Front & Rear, Fender Rear 620 Cab Front & Rear, Fender Rear

Existing reviews

LED-666 Oval 40degree on Challenger 655B

From: Evan Watson Date: 7/10/2019 6:30 PM

Bought these with the “Solid Mount” bracket and added washers to mount on the OEM bracket per Kenny’s recommendation. Worked excellent has the OEM look and great light output. Used these on the upper cab rear lights.

Was this review helpful? Yes No (6/0)

LED -666 oval 60 degree on John Deere 4066R

From: brian rector Date: 12/30/2019 5:06 PM

Bought these for my 4066R , which Kenny recommended. Everything is plug and play. They put the factory lights to shame. Thank you Kenny

Was this review helpful? Yes No (5/0)

JD9520

From: Richard Yaggie Date: 1/8/2020 9:29 AM

Installed the LED-666 on the rear fenders - night and day difference in light output, very easy to install using the "Solid Mount" bracket.

Was this review helpful? Yes No (4/0)

LED-666 on a JD 3046R

From: Michael Yapel Date: 1/17/2020 8:23 AM

I did the installation this morning and am really happy with the upgrade!  They are a huge upgrade over OEM.  Not only brighter, but much more effective spill pattern.

A few points for your future reference:

1.  The 3046R uses the smaller of the two connectors you sent

2.  The mounts fit perfectly into the OEM brackets, so the u-brackets are not needed for installation on tractors that already have factory lights.

3.  Installation time is about 10 min per light.  Maybe 5 at the bench to set up the mount and 5 on the tractor to swap out.  Everything lined up perfectly!

Thanks for your help.

Was this review helpful? Yes No (2/2)

LED-666 with Side mount on 3046R

From: Guest Date: 5/29/2021 2:53 PM

Outstanding replacements. So many times better than the factory original and they look factory themselves. These lights are heavy duty built (they are heavy compared to the cheap plastic from JD). Direct fit with the side mount kit. With factory installed lights, you don’t need most of the pieces in the kit. I got 80* as that’s what was available and they work well - better than expected. Only suggestion, buy the amber’s so you can replace them at the same time.

Was this review helpful? Yes No (2/0)

Absolute best lights on the market

From: Guest Date: 10/8/2022 7:56 PM

I just installed these on my John Deere 3039R to replace the OEM work lighting on my cab. I’ve been know to get a little carried away with lighting on all of my tractors. Never have I had lights this bright and so functional. I took Larson’s recommendation for 60 degree fronts and 80 degree rears, would strongly suggest going with this combo.

Was this review helpful? Yes No (0/0)
